Power Source Circuit [09/2019 - 08/2020]: Wiring Diagram

  1. for TMMT Made

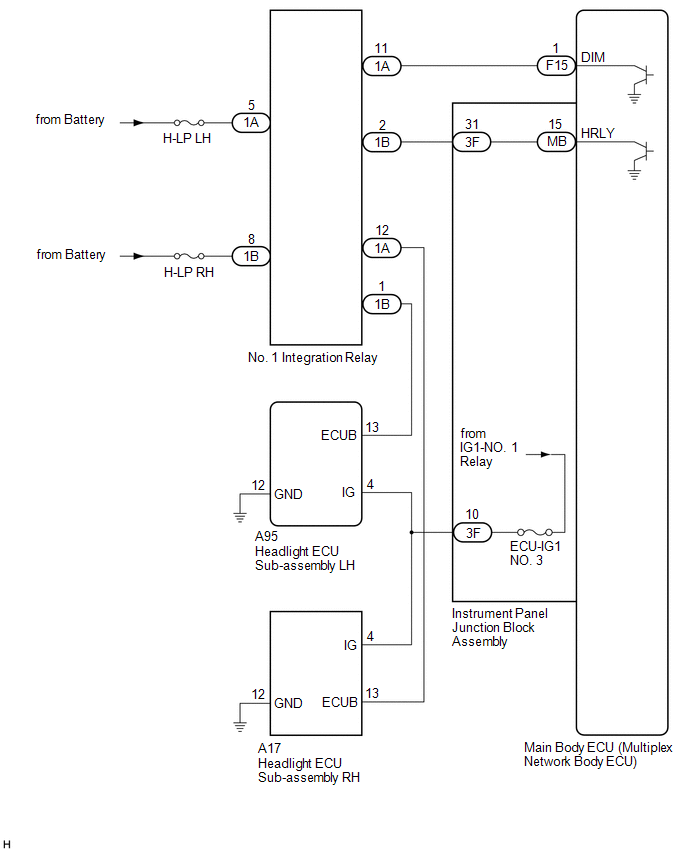

    Fig 1: Power Source Circuit Diagram (For TMMT Made)
    GTY920087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for TMC Made
    Fig 2: Power Source Circuit Diagram (For TMC Made)
    GTY774240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
