Headlight Dimmer Switch Circuit [09/2019 - 08/2020]: Wiring Diagram

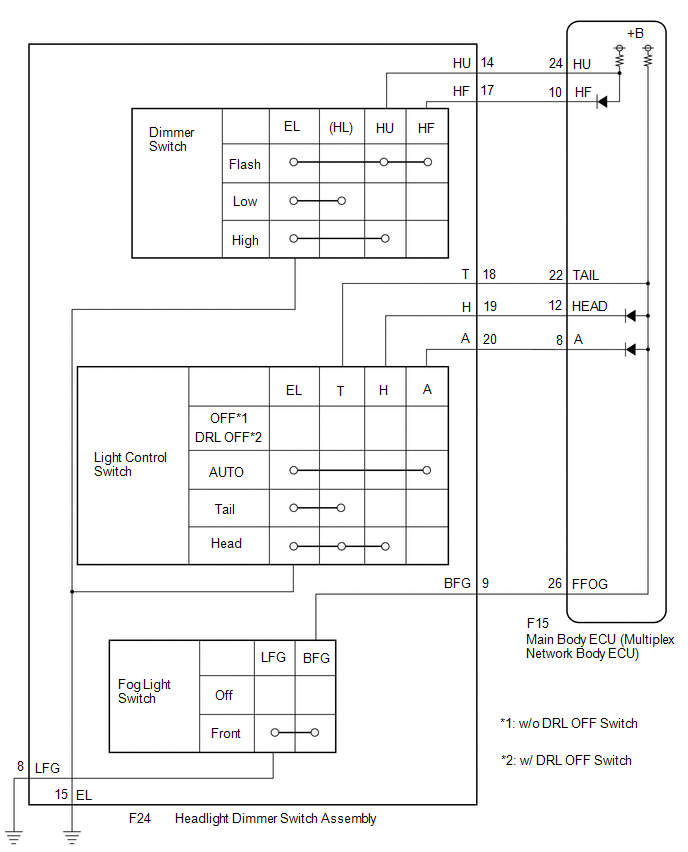

Fig 1: Headlight Dimmer Switch Circuit Diagram

GTY844806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
