Headlight Dimmer Switch Circuit [08/2020 - ]: Wiring Diagram

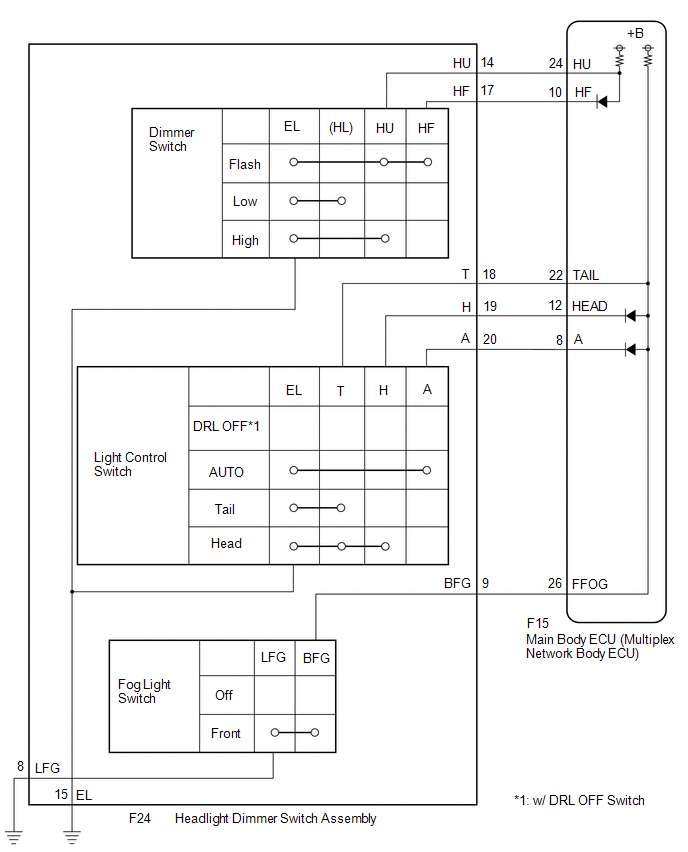

Fig 1: Headlight Dimmer Switch Circuit Diagram

GTY982055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
