Front Fog Light Circuit [09/2019 - ]: Wiring Diagram

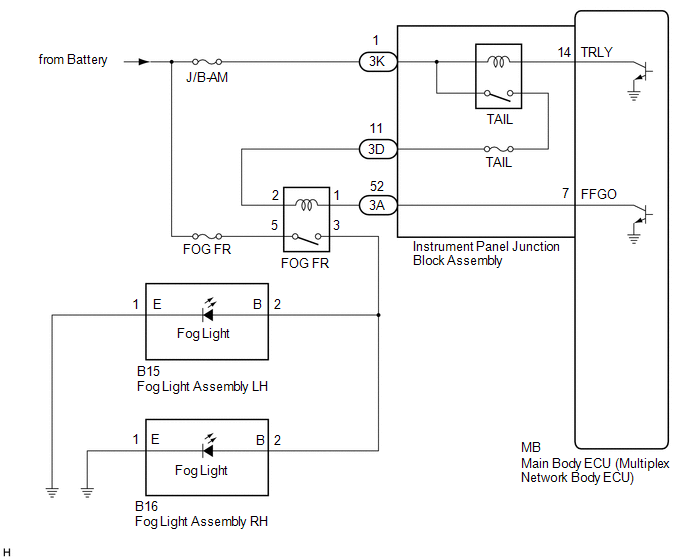

Fig 1: Front Fog Light Circuit Diagram

GTY865276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
