DTC B2412: Headlight Swivel Motor LH; DTC B2413: Headlight Swivel Motor RH [08/2020 - ]: Wiring Diagram

  1. for TMMT Made
    Fig 1: Headlight Swivel Motor LH Circuit Diagram (For TMMT Made)
    GTY910105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for TMC Made

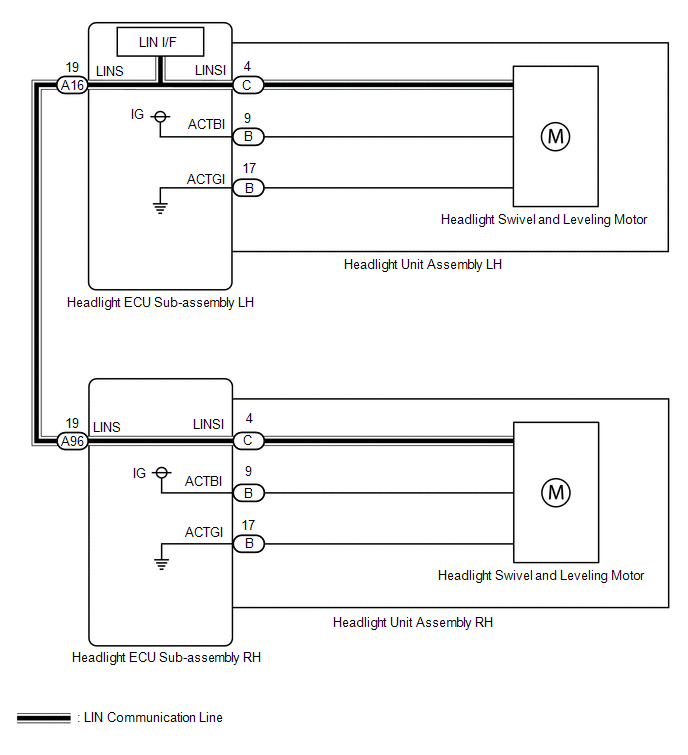

    Fig 2: Headlight Swivel Motor LH Circuit Diagram (For TMC Made)
    GTY982911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
