DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication [08/2020 - ]: Wiring Diagram

for TMMT Made

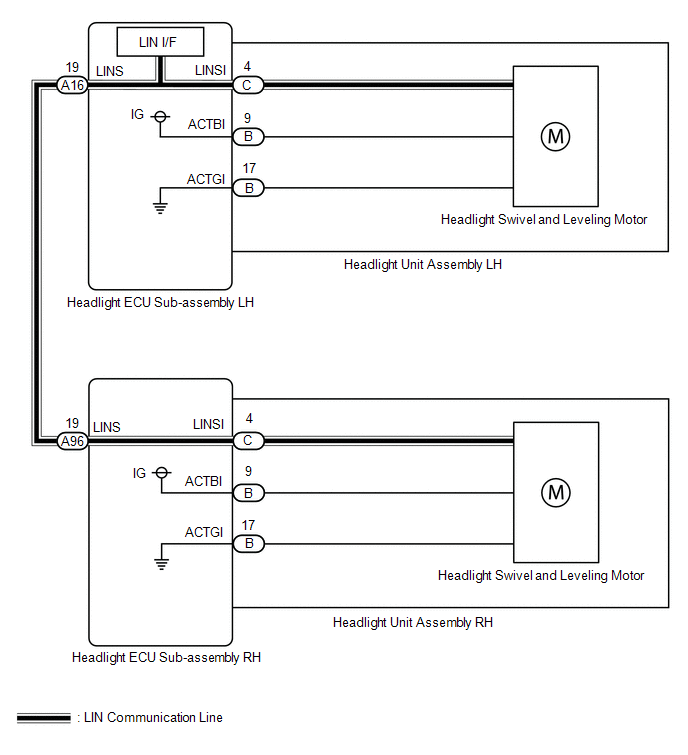

Fig 1: Headlight Swivel ECU LH Communication Circuit Diagram (For TMMT Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for TMC Made

Fig 2: Headlight Swivel ECU LH Communication Circuit Diagram (For TMC Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
