DTC B1835: Short in Curtain Shield Squib LH Circuit; DTC B1836: Open in Curtain Shield Squib LH Circuit; DTC B1837: Short in Curtain Shield Squib LH Circuit (To Ground); DTC B1838: Short in Curtain Shield Squib LH Circuit (To B+) [09/2019 - ]: Wiring Diagram

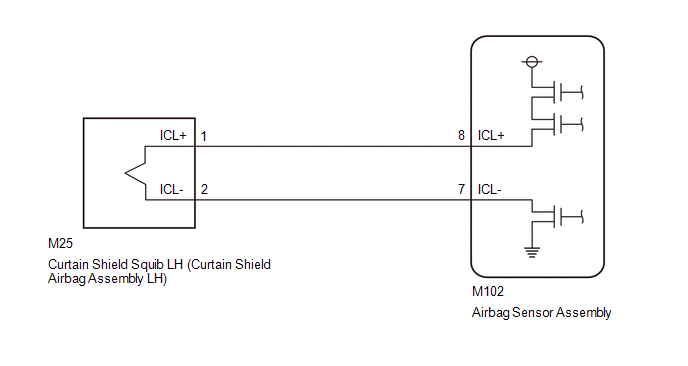

Fig 1: Short In Curtain Shield Squib LH Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
