DTC B1660: P Seat Airbag Active Mode Indicator [09/2019 - ]: Wiring Diagram

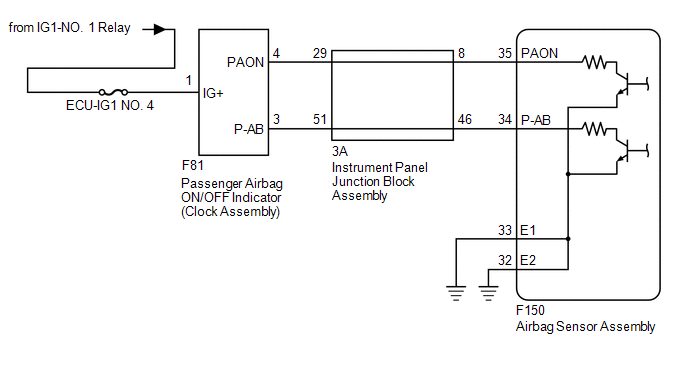

Fig 1: P Seat Airbag Active Mode Indicator Circuit Diagram

GTY940016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
