DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [02/2017 - 10/2017]: Wiring Diagram

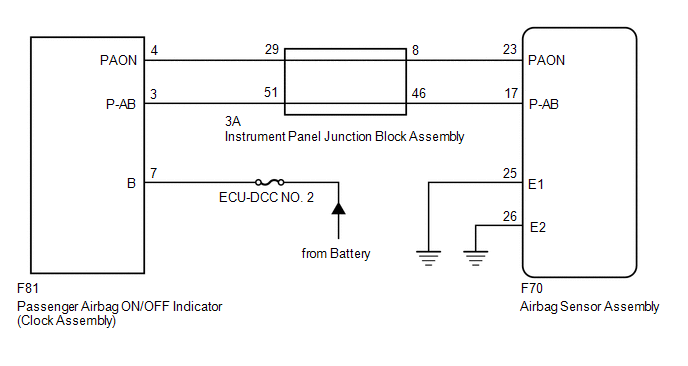

Fig 1: Passenger Airbag ON/OFF Indicator Malfunction Circuit Diagram
GTY752883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
