DTC B1656: Seat Belt Buckle Switch (LH) [09/2019 - ]: Wiring Diagram

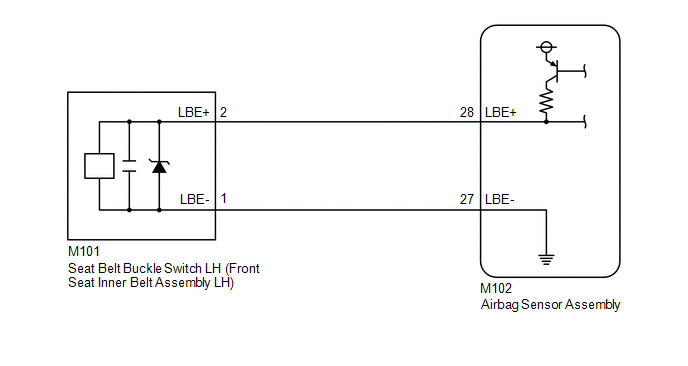

Fig 1: Seat Belt Buckle Switch (LH) Circuit Diagram

GTY862162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
