DTC B1651: Manual Cut OFF Switch Trouble [09/2019 - ]: Wiring Diagram

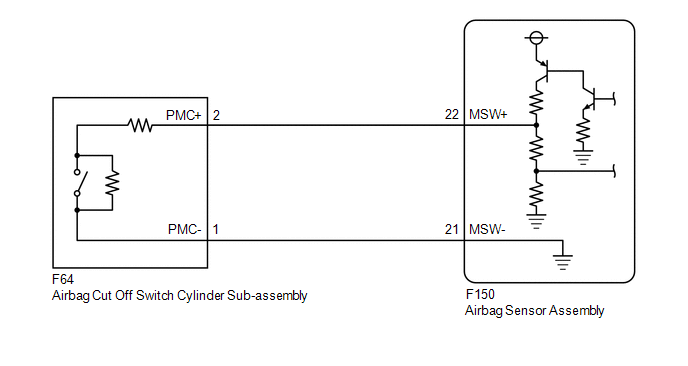

Fig 1: Manual Cut OFF Switch Trouble Circuit Diagram

GTY933956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
