Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Supplemental Restraint System - Diagnostic Codes (B1627-B1656)
>>
Airbag System
>>
DTC B1647: Side Satellite Sensor Bus Lost Communication (LH); DTC B1648: Side Satellite Sensor Bus Initialization Error (LH) [09/2019 - 12/2021]
>>
Wiring Diagram
DTC B1647: Side Satellite Sensor Bus Lost Communication (LH); DTC B1648: Side Satellite Sensor Bus Initialization Error (LH) [09/2019 - 12/2021]: Wiring Diagram

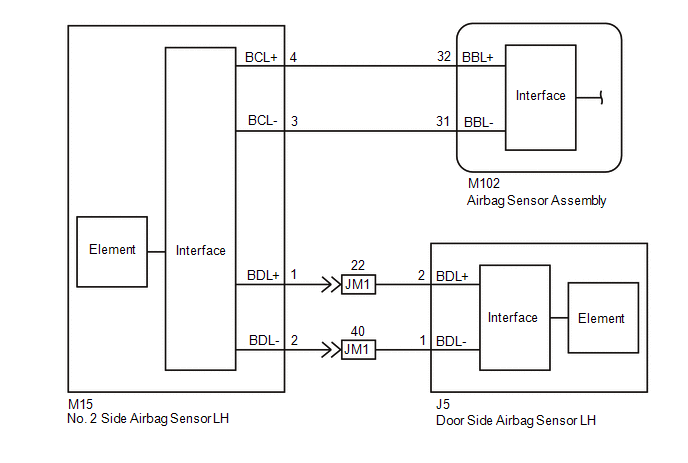

Fig 1: Side Satellite Sensor Bus Lost Communication (LH) Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
