Supplemental Restraint System - Diagnostic Codes (B1627-B1656)
>>
Airbag System
>>
DTC B1642: Side Satellite Sensor Bus Lost Communication (RH); DTC B1643: Side Satellite Sensor Bus Initialization Error (RH) [09/2019 - 12/2021]
>>
Wiring Diagram
DTC B1642: Side Satellite Sensor Bus Lost Communication (RH); DTC B1643: Side Satellite Sensor Bus Initialization Error (RH) [09/2019 - 12/2021]: Wiring Diagram

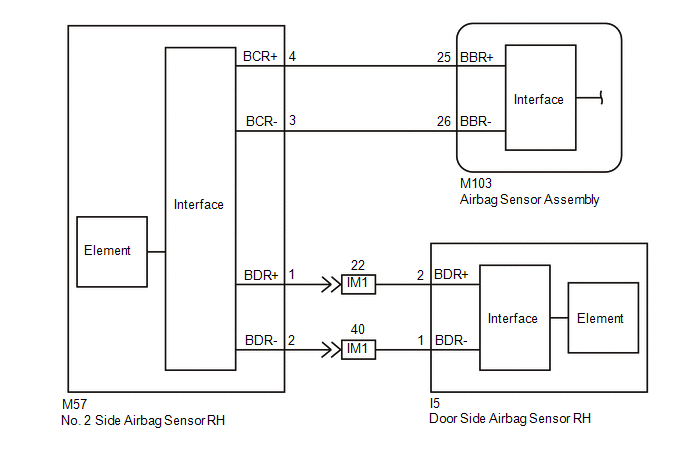

Fig 1: Side Satellite Sensor Bus Lost Communication (RH) Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
