DTC B163B: Side Airbag Sensor Assembly No. 2 Lost Communication (LH); DTC B163C: Side Airbag Sensor Assembly No. 2 Initialization Error (LH) [09/2019 - ]: Procedure

CHECK CONNECTORS

Turn the ignition switch off.
Disconnect the cable from the negative (-) battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
Check that the connectors are properly connected to the airbag sensor assembly and floor side airbag sensor LH.
OK

The connectors are properly connected.

HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.
Disconnect the connectors from the airbag sensor assembly and floor side airbag sensor LH.

Check that the terminals of the connectors are not deformed or damaged.

The terminals are not deformed or damaged.

Result

Proceed to
OK
NG

Result:

REPLACE FLOOR WIRE

Result:

See step 2

CHECK FLOOR WIRE (OPEN)

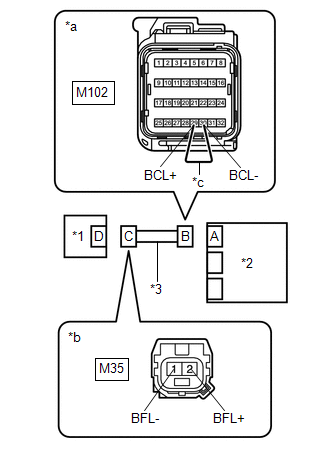

Using a service wire, connect terminals 29 (BCL+) and 30 (BCL-) of connector B.

NOTE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Floor Side Airbag Sensor LH
*2	Airbag Sensor Assembly
*3	Floor Wire
*a	Front view of wire harness connector (to Airbag Sensor Assembly)
*b	Front view of wire harness connector (to Floor Side Airbag Sensor LH)
*c	Service Wire

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
M35-2 (BFL+) - M35-1 (BFL-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Result

Proceed to
OK
NG

Result:

REPLACE FLOOR WIRE

Result:

See step 3

CHECK FLOOR WIRE (SHORT)

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Floor Side Airbag Sensor LH
*2	Airbag Sensor Assembly
*3	Floor Wire
*a	Front view of wire harness connector (to Floor Side Airbag Sensor LH)

Standard Resistance

Tester Connection	Condition	Specified Condition
M35-2 (BFL+) - M35-1 (BFL-)	Always	1 MΩ or higher

Result

Proceed to
OK
NG

Result:

REPLACE FLOOR WIRE

Result:

See step 4

CHECK FLOOR WIRE (SHORT TO B+)

Connect the cable to the negative (-) battery terminal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Floor Side Airbag Sensor LH
*2	Airbag Sensor Assembly
*3	Floor Wire
*a	Front view of wire harness connector (to Floor Side Airbag Sensor LH)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Switch Condition	Specified Condition
M35-2 (BFL+) - Body ground	Ignition switch ON	Below 1 V
M35-1 (BFL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal.

WARNING:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

Result

Proceed to
OK
NG

Result:

REPLACE FLOOR WIRE

Result:

See step 5

CHECK FLOOR WIRE (SHORT TO GROUND)

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Floor Side Airbag Sensor LH
*2	Airbag Sensor Assembly
*3	Floor Wire
*a	Front view of wire harness connector (to Floor Side Airbag Sensor LH)

Standard Resistance

Tester Connection	Condition	Specified Condition
M35-2 (BFL+) - Body ground	Always	1 MΩ or higher
M35-1 (BFL-) - Body ground	Always	1 MΩ or higher

Result

Proceed to
OK
NG

Result:

REPLACE FLOOR WIRE

Result:

See step 6

CHECK FLOOR SIDE AIRBAG SENSOR LH

Connect the connector to the airbag sensor assembly.

*1	Floor Side Airbag Sensor RH
*2	Airbag Sensor Assembly

Interchange the floor side airbag sensor LH with RH and connect the connectors.
Connect the cable to the negative (-) battery terminal.
Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [09/2019 - ]

Body Electrical > SRS Airbag > Clear DTCs
Turn the ignition switch off.
Turn the ignition switch to ON, and wait for at least 60 seconds.

Check for DTCs.

Refer to DTC CHECK / CLEAR [09/2019 - ]

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B162B, B162C, B163B and B163C may be output at this time, but they are not related to this check.

Result

Result	Proceed to
DTC B163B or B163C is output.	A
DTC B162B or B162C is output.	B
DTCs B162B, B162C, B163B and B163C are not output.	C

Turn the ignition switch off.
Disconnect the cable from the negative (-) battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
Return the floor side airbag sensor LH and RH to their original positions and connect the connectors.

Result:

REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [09/2019 - 08/2020] , or refer to REMOVAL [08/2020 - ]

Result:

REPLACE FLOOR SIDE AIRBAG SENSOR LH. Refer to REMOVAL [09/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - ]

Result:

USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2019 - 08/2020] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2020 - ]
