On-Vehicle Inspection [02/2017 - ]: Procedure

  1. INSPECT HOOD SUB-ASSEMBLY

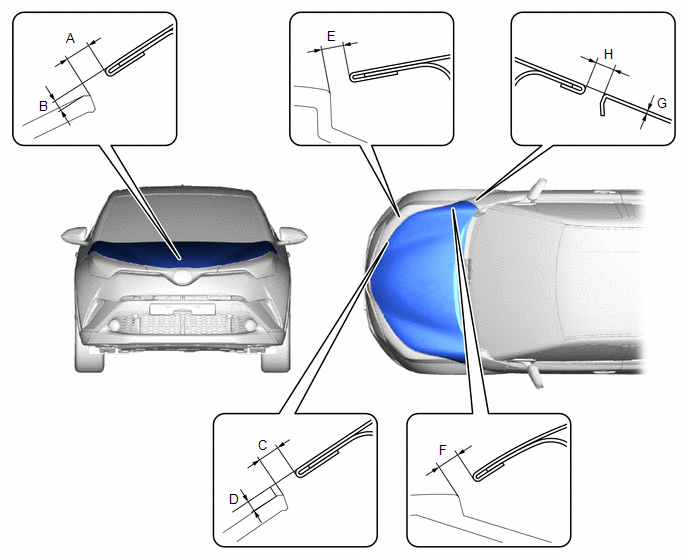

    1. Check that the clearance measurements of areas "A" to "H" are within the standard ranges.
      GTY774715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      A 2.8 to 5.8 mm (0.110 to 0.228 in.) B 0.5 to 3.5 mm (0.020 to 0.138 in.)
      C 2.8 to 5.8 mm (0.110 to 0.228 in.) D 0.5 to 3.5 mm (0.020 to 0.138 in.)
      E 1.8 to 5.8 mm (0.071 to 0.228 in.) F 1.8 to 5.8 mm (0.071 to 0.228 in.)
      G -1.5 to 1.5 mm (-0.059 to 0.059 in.) H 3.4 to 6.4 mm (0.134 to 0.252 in.)
