Components [02/2017 - ]

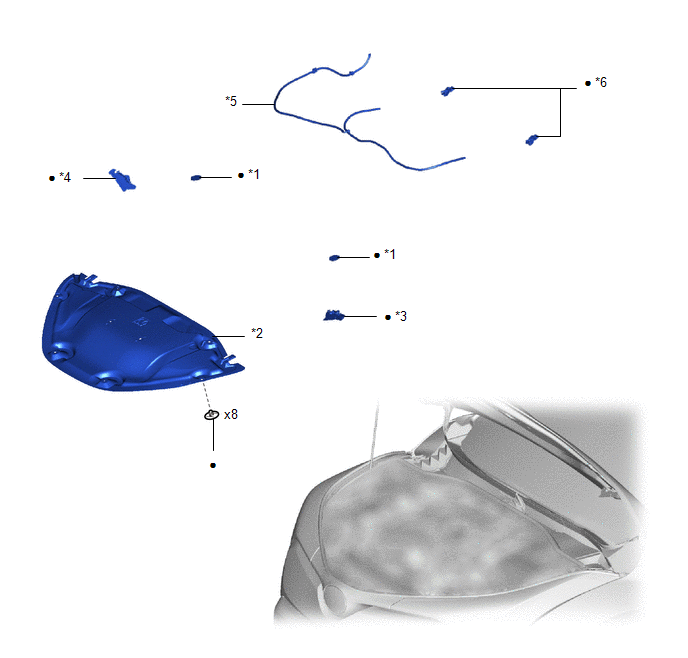

Fig 1: Hood Replacement Components
GTY760476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HOLE PLUG *2 HOOD INSULATOR
*3 HOOD SIDE PANEL LH *4 HOOD SIDE PANEL RH
*5 WASHER HOSE ASSEMBLY *6 WASHER NOZZLE SUB-ASSEMBLY
• Non-reusable part - -
