Components [10/2017 - 05/2018]
| *1 | FRONT FENDER LINER LH | *2 | NO. 1 RADIATOR GRILLE RETAINER |
| *3 | NO. 1 RADIATOR TO SUPPORT SEAL | - | - |

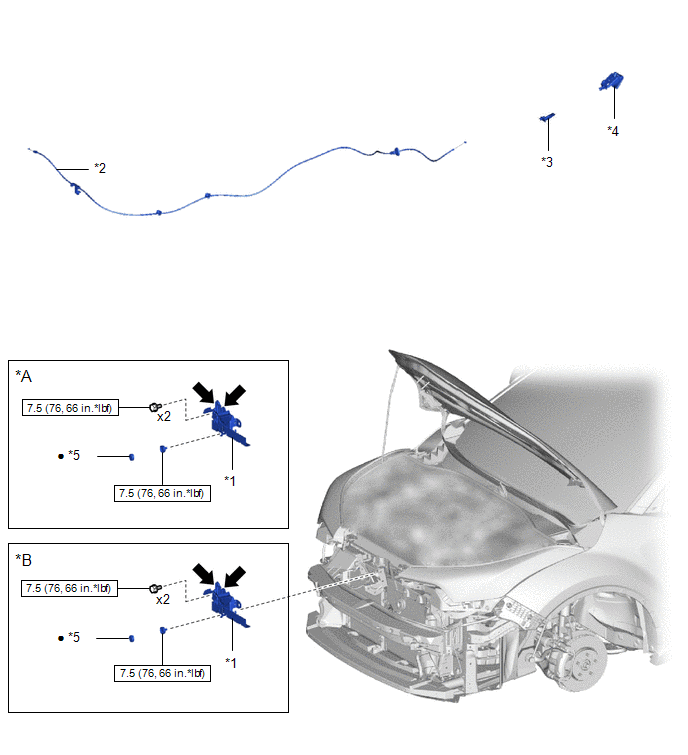

Fig 2: Hood Lock Control Cable Assembly Replacement Components With Torque Specifications [10/2017 - 05/2018] (2 Of 2)
| Callout | Description | Callout | Description |
| *A | w/ Engine Hood Courtesy Switch | *B | w/o Engine Hood Courtesy Switch |
| *1 | HOOD LOCK ASSEMBLY | *2 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| *3 | HOOD LOCK CONTROL CABLE HOLDER | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | HOOD LOCK NUT CAP | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
