Adjustment [02/2017 - 05/2018]: Procedure

INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

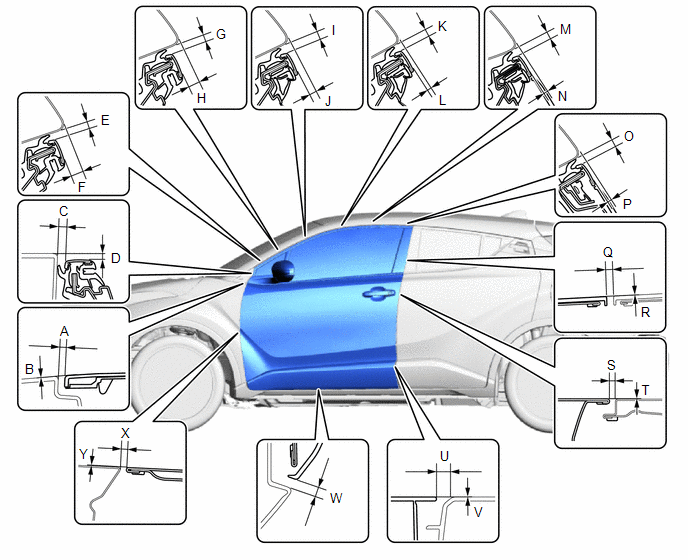

Check that the clearance measurements of areas "A" to "Y" are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
A	2.1 to 6.1 mm (0.083 to 0.240 in.)	B	-2.0 to 2.0 mm (-0.079 to 0.079 in.)
C	3.1 to 7.1 mm (0.122 to 0.280 in.)	D	2.9 to 6.9 mm (0.114 to 0.272 in.)
E	3.3 to 6.7 mm (0.130 to 0.264 in.)	F	7.1 to 11.1 mm (0.280 to 0.437 in.)
G	3.3 to 6.7 mm (0.130 to 0.264 in.)	H	5.9 to 9.9 mm (0.232 to 0.390 in.)
I	3.3 to 6.7 mm (0.130 to 0.264 in.)	J	3.7 to 7.7 mm (0.146 to 0.303 in.)
K	3.3 to 6.7 mm (0.130 to 0.264 in.)	L	1.4 to 5.4 mm (0.055 to 0.213 in.)
M	3.3 to 6.7 mm (0.130 to 0.264 in.)	N	1.2 to 5.2 mm (0.047 to 0.205 in.)
O	3.3 to 6.7 mm (0.130 to 0.264 in.)	P	0.8 to 3.8 mm (0.031 to 0.150 in.)
Q	2.4 to 6.4 mm (0.094 to 0.252 in.)	R	-2.0 to 2.0 mm (-0.079 to 0.079 in.)
S	2.9 to 5.3 mm (0.114 to 0.209 in.)	T	-1.2 to 1.2 mm (-0.047 to 0.047 in.)
U	7.5 to 11.5 mm (0.295 to 0.453 in.)	V	-2.0 to 2.0 mm (-0.079 to 0.079 in.)
W	3.5 to 8.5 mm (0.138 to 0.335 in.)	X	2.7 to 5.7 mm (0.106 to 0.224 in.)
Y	-1.5 to 1.5 mm (-0.059 to 0.059 in.)	-	-

ADJUST FRONT DOOR PANEL SUB-ASSEMBLY

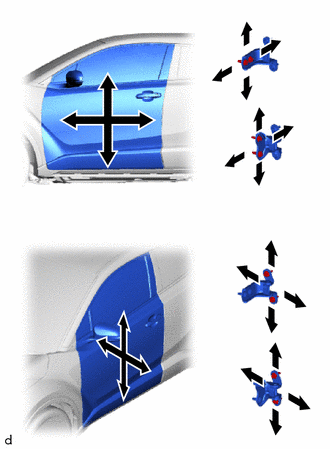

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

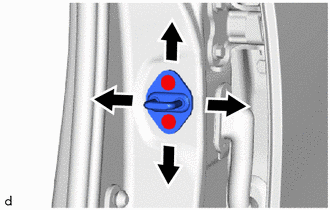

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
