(Door / Hatch) - Service Information (2 Of 2)
>>
Front Door Opening Trim Weatherstrip
>>
Components [02/2017 - ]
Components [02/2017 - ]

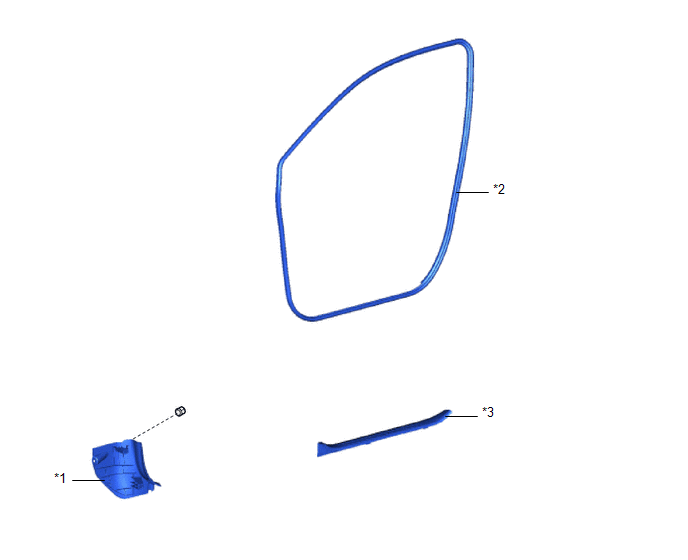

Fig 1: Front Door Opening Trim Weatherstrip Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COWL SIDE TRIM BOARD
*2
FRONT DOOR OPENING TRIM WEATHERSTRIP
*3
FRONT DOOR SCUFF PLATE
-
-
