Components [09/2019 - ]
| *1 | REAR DOOR BELT REAR SEAL | *2 | REAR DOOR BELT SEAL |
| *3 | REAR DOOR GLASS INNER WEATHERSTRIP | *4 | REAR DOOR INSIDE HANDLE BEZEL PLUG |
| *5 | REAR DOOR INSIDE HANDLE SUB-ASSEMBLY | *6 | REAR DOOR REAR FRAME BRACKET |
| *7 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | *8 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE UPPER PANEL |
| Callout | Description | Callout | Description |
| *A | for TMC Made | *B | w/ Rear Seat Side Airbag |

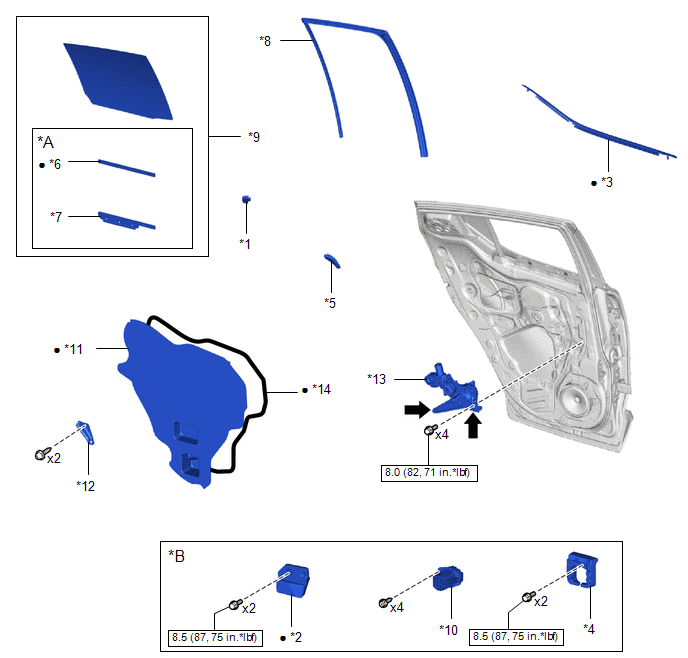

| *1 | NO. 2 REAR DOOR FRAME GARNISH | *2 | NO. 2 SEPARATOR DOOR STIFFENER CUSHION |
| *3 | REAR DOOR BELT MOULDING ASSEMBLY | *4 | REAR DOOR CUSHION |
| *5 | REAR DOOR FRAME GARNISH | *6 | REAR DOOR GLASS CHANNEL FILLER |
| *7 | REAR DOOR GLASS CHANNEL SUB-ASSEMBLY | *8 | REAR DOOR GLASS RUN |
| *9 | REAR DOOR GLASS SUB-ASSEMBLY | *10 | REAR DOOR INSIDE PANEL REINFORCE SUB-ASSEMBLY |
| *11 | REAR DOOR SERVICE HOLE COVER | *12 | REAR DOOR TRIM BRACKET |
| *13 | REAR DOOR WINDOW REGULATOR ASSEMBLY | *14 | BUTYL TAPE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
| Callout | Description | Callout | Description |

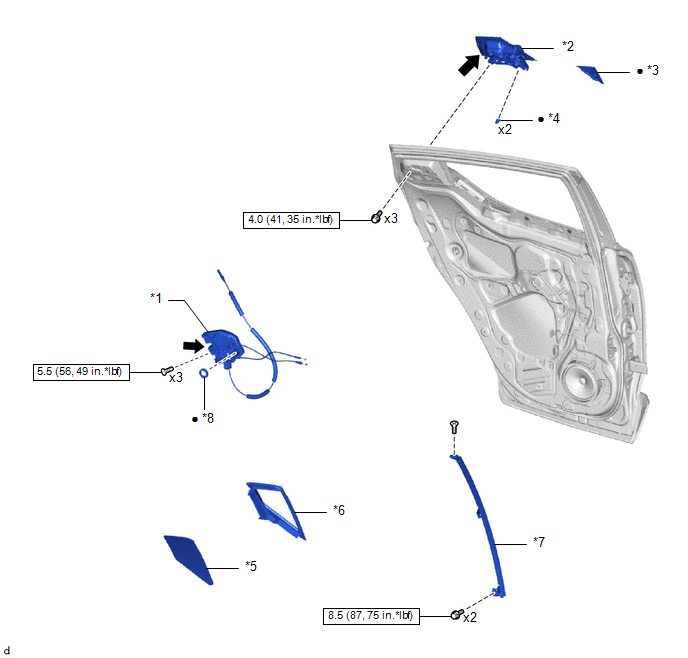

| *1 | NO. 3 DOOR OUTSIDE HANDLE CAP | *2 | REAR DOOR LOCK WITH MOTOR ASSEMBLY |
| *3 | REAR DOOR OUTSIDE HANDLE ASSEMBLY | *4 | REAR DOOR OUTSIDE HANDLE COVER |
| *5 | REAR DOOR QUARTER WINDOW GLASS | *6 | REAR DOOR QUARTER WINDOW WEATHERSTRIP |
| *7 | REAR DOOR WINDOW REAR LOWER FRAME SUB-ASSEMBLY | *8 | DOOR LOCK WIRING HARNESS SEAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
| Callout | Description | Callout | Description |

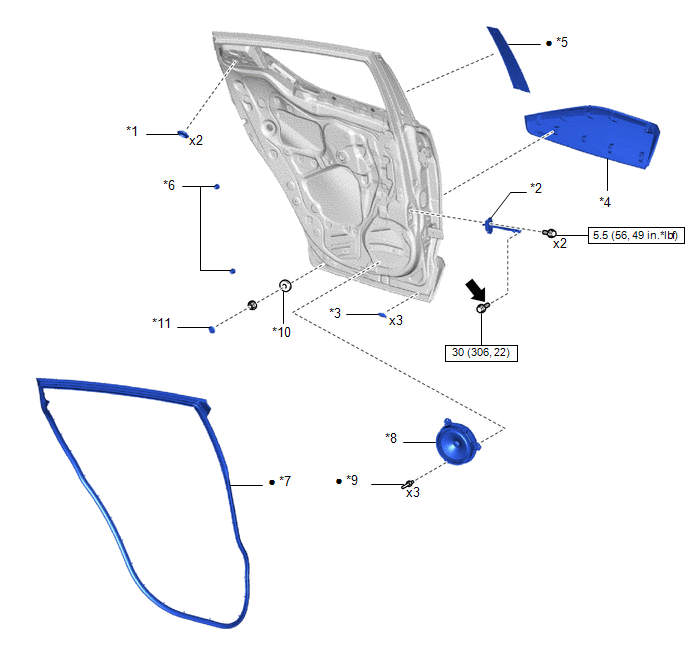

| *1 | HOLE PLUG | *2 | REAR DOOR CHECK ASSEMBLY |
| *3 | REAR DOOR DUST PROOF SEAL | *4 | REAR DOOR OUTSIDE MOULDING |
| *5 | REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY | *6 | REAR DOOR PANEL CUSHION |
| *7 | REAR DOOR WEATHERSTRIP | *8 | REAR SPEAKER ASSEMBLY |
| *9 | RIVET | *10 | GASKET |
| *11 | HOLE COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |

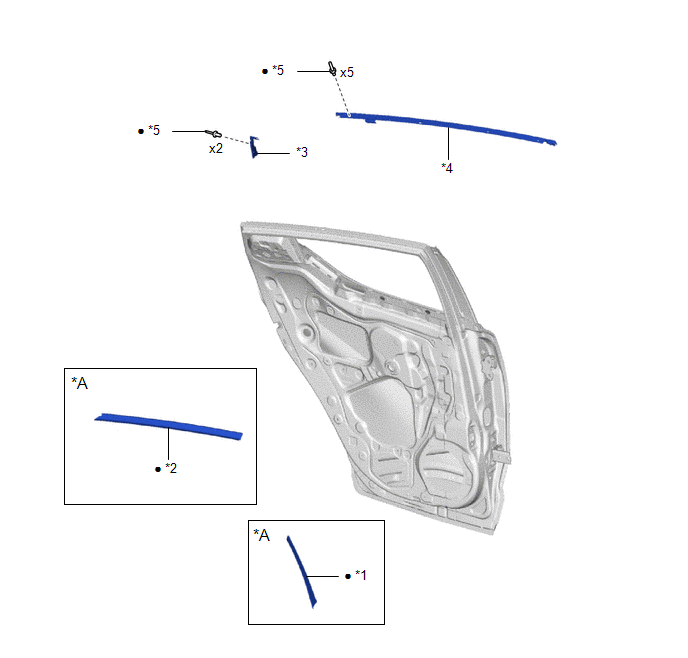

| *A | w/ Stripe Tape | - | - |
| *1 | REAR DOOR LOWER OUTSIDE STRIPE | *2 | REAR DOOR OUTSIDE STRIPE |
| *3 | REAR DOOR REAR WINDOW FRAME MOULDING | *4 | REAR DOOR UPPER WINDOW FRAME MOULDING |
| *5 | RIVET | - | - |
| • | Non-reusable part | - | - |
