Adjustment [02/2017 - 05/2018]: Procedure

INSPECT REAR DOOR PANEL SUB-ASSEMBLY

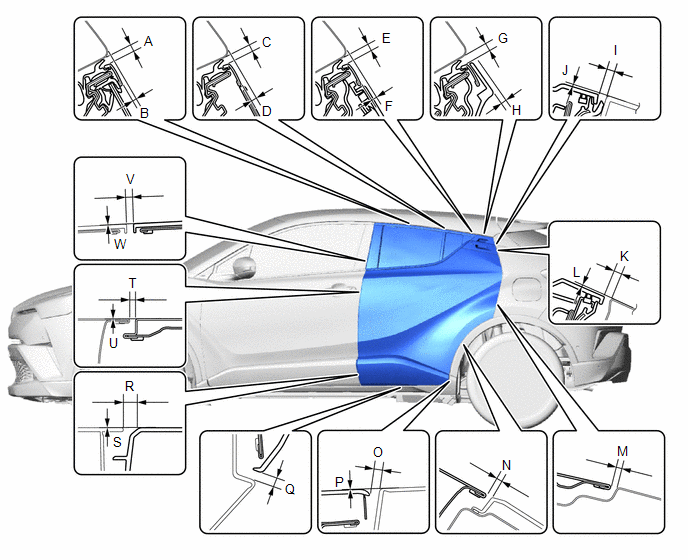

Check that the clearance measurements of areas "A" to "W" are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
A	3.3 to 6.7 mm (0.130 to 0.264 in.)	B	0.9 to 4.9 mm (0.035 to 0.193 in.)
C	3.3 to 6.7 mm (0.130 to 0.264 in.)	D	1.8 to 5.8 mm (0.071 to 0.228 in.)
E	3.3 to 6.7 mm (0.130 to 0.264 in.)	F	2.5 to 6.5 mm (0.098 to 0.256 in.)
G	3.3 to 6.7 mm (0.130 to 0.264 in.)	H	2.3 mm (0.091 in.)
I	3.3 to 7.3 mm (0.130 to 0.287 in.)	J	1.0 mm (0.039 in.)
K	2.6 to 6.6 mm (0.102 to 0.260 in.)	L	0.7 mm (0.028 in.)
M	2.6 to 5.6 mm (0.102 to 0.220 in.)	N	2.1 to 6.1 mm (0.083 to 0.240 in.)
O	3.3 to 8.3 mm (0.130 to 0.327 in.)	P	-2.5 to 2.5 mm (-0.098 to 0.098 in.)
Q	3.5 to 8.5 mm (0.138 to 0.335 in.)	R	7.5 to 11.5 mm (0.295 to 0.453 in.)
S	-2.0 to 2.0 mm (-0.079 to 0.079 in.)	T	2.9 to 5.3 mm (0.114 to 0.209 in.)
U	-1.2 to 1.2 mm (-0.047 to 0.047 in.)	V	2.4 to 6.4 mm (0.094 to 0.252 in.)
W	-2.0 to 2.0 mm (-0.079 to 0.079 in.)	-	-

ADJUST REAR DOOR PANEL SUB-ASSEMBLY

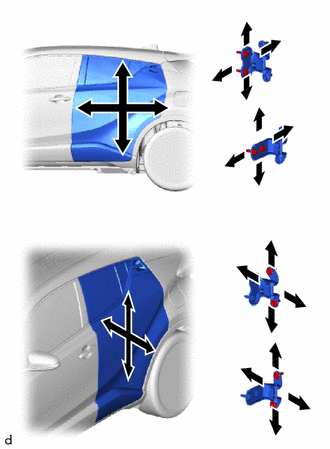

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

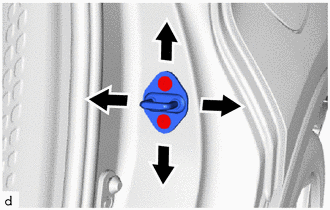

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
