Removal [02/2017 - 10/2017]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [02/2017 - ]

  2. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - STEP 20

  3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

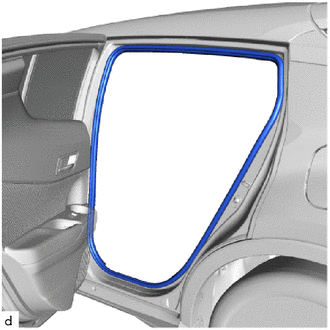

    1. Remove the rear door opening trim weatherstrip.
      GTY741362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
