Rear Door Opening Trim Weatherstrip
>>
Components [10/2017 - 12/2021]
Components [10/2017 - 12/2021]

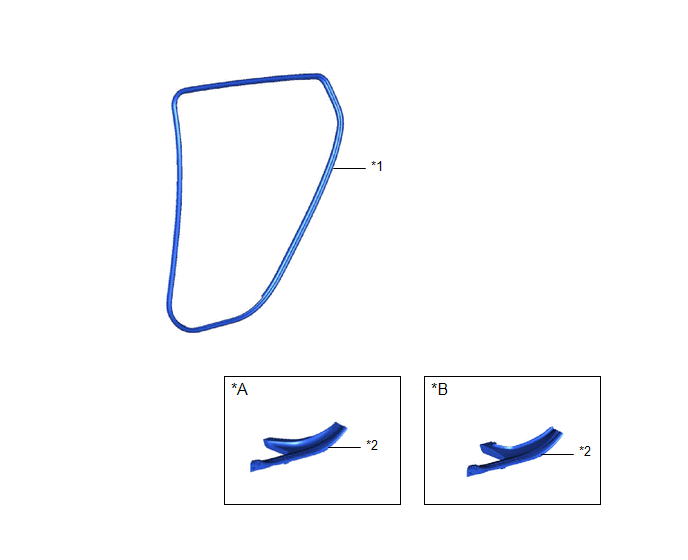

Fig 1: Rear Door Opening Trim Weatherstrip Replacement Components [10/2017 - 12/2021]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
w/o Rear Seat Side Airbag
*B
w/ Rear Seat Side Airbag
*1
REAR DOOR OPENING TRIM WEATHERSTRIP
*2
REAR DOOR SCUFF PLATE
