Removal [02/2017 - ]: Procedure

  1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - ]

  2. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

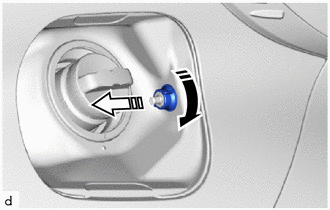

    1. Remove the fuel filler opening lid lock retainer as shown in the illustration.
      GTY750507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  3. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

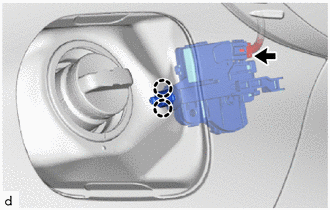

    1. Disengage the claws.
      GTY741379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the fuel lid lock with motor assembly.
