Inspection [02/2017 - ]: Procedure
- INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY
- Check the operation of the fuel lid lock with motor assembly (motor operation).
- Apply battery voltage to the fuel lid lock with motor assembly connector, and measure the shaft stroke.
OK
Auxiliary Battery Connection Specified Condition Battery positive (+) → Terminal 1 (B)
Battery negative (-) → Terminal 2 (E)16.05 mm (0.632 in.) If the result is not as specified, replace the fuel lid lock with motor assembly.

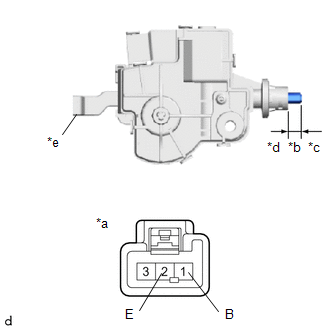

*a Component without harness connected
(Fuel Lid Lock with Motor Assembly)*b Shaft Stroke *c Shaft not pushed *d Shaft Pushed *e Lever
- Apply battery voltage to the fuel lid lock with motor assembly connector, and measure the shaft stroke.
- Measure the shaft stroke.
OK
Area Condition Specified Condition Shaft stroke Lever pulled 16.05 mm
(0.632 in.)If the result is not as specified, replace the fuel lid lock with motor assembly.
- Check the operation of the fuel lid lock with motor assembly (motor operation).
