Fuel Lid Opener Motor Assembly
>>
Components [02/2017 - ]
Components [02/2017 - ]

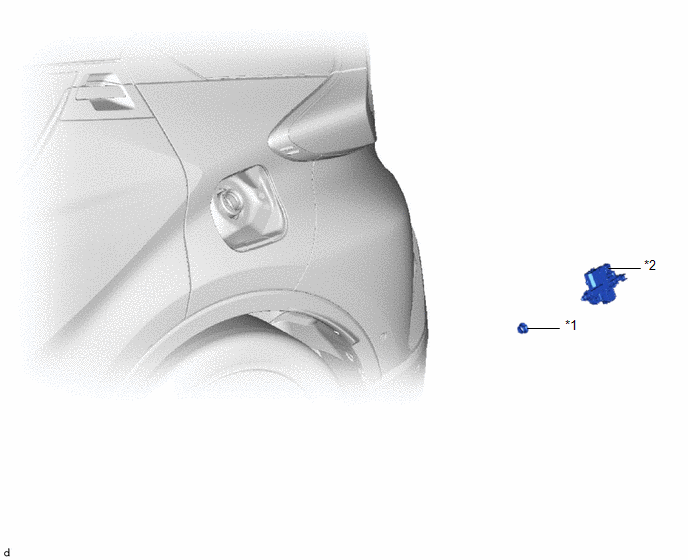

Fig 1: Fuel Lid Opener Motor Assembly Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FUEL FILLER OPENING LID LOCK RETAINER
*2
FUEL LID LOCK WITH MOTOR ASSEMBLY
