Reassembly [02/2017 - 10/2017]: Procedure

  1. INSTALL NO. 1 BACK DOOR EMBLEM

    Refer to PROCEDURE - STEP 1

  2. INSTALL NO. 2 BACK DOOR NAME PLATE

    Refer to PROCEDURE - STEP 2

  3. INSTALL HOLE PLUG (w/ Grommet)

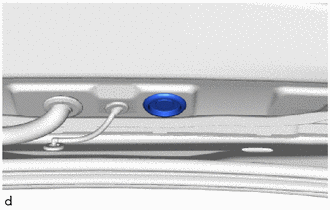

    1. Install the hole plug.
      GTY847308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR LIGHT PACKING

    Refer to PROCEDURE - STEP 1

  5. INSTALL REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - STEP 2

  6. INSTALL REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  7. INSTALL NO. 2 BACK DOOR PANEL PROTECTOR
    1. Clean vehicle installation surface.
    2. Remove the release paper from a new No. 2 back door panel protector.
    3. Engage the clips to install the No. 2 back door panel protector.

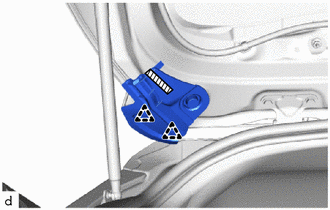

      GTY752166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    4. Press the double-sided tape area of the No. 2 back door panel protector.
  8. INSTALL NO. 1 BACK DOOR PANEL PROTECTOR

    HINT:

    Use the same procedure for the No. 2 back door panel protector.

  9. INSTALL BACK DOOR PANEL CUSHION

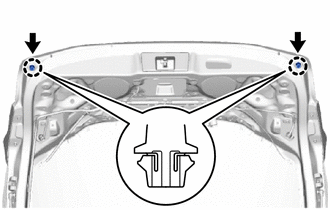

    1. Engage the claws to install the 2 back door panel cushions.
      GTY756328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - STEP 1

  11. INSTALL LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - STEP 1

  12. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY

    See step  1

  13. INSTALL BACK DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - STEP 2

  14. INSTALL REAR WASHER NOZZLE

    Refer to PROCEDURE - STEP 1

  15. INSTALL REAR SPOILER ASSEMBLY

    Refer to PROCEDURE - STEP 1

  16. INSTALL BACK DOOR LOWER STOPPER

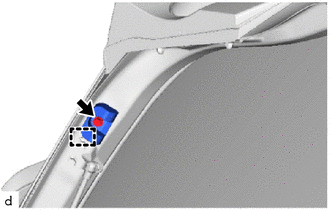

    1. Engage the guide and install the back door lower stopper.
      GTY756318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new bolt.

      Torque: 7.2 N*m (73 kgf*cm, 64 in.*lbf)

      HINT:

      Use the same procedure for the RH side and LH side.

  17. INSTALL REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - STEP 2

  18. INSTALL REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - STEP 1

  19. INSTALL REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - STEP 3

  20. INSTALL BACK DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - STEP 1

  21. INSTALL BACK DOOR LOCK COVER
    1. Clean vehicle installation surface.
    2. Remove the release paper from a new back door lock cover.
    3. Engage the claws to install the back door lock cover.

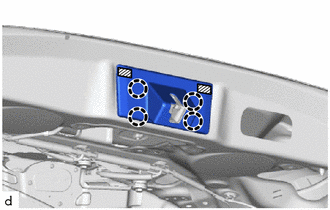

      GTY773381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    4. Press the double-sided tape area of the back door lock cover.
  22. INSTALL BACK DOOR SERVICE HOLE COVER LH

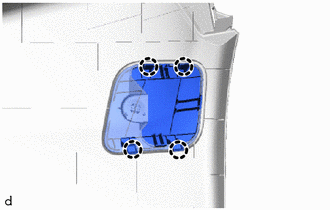

    1. Engage the claws to install the back door service hole cover LH.
      GTY772010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  24. INSTALL NO. 3 BACK DOOR SERVICE HOLE COVER
    1. Engage the claws to install the No. 3 back door service hole cover.

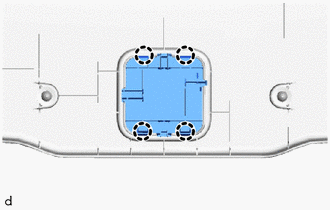

      GTY756320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL NO. 2 BACK DOOR SERVICE HOLE COVER

    HINT:

    Use the same procedure as for the No. 1 back door service hole cover.

  26. INSTALL NO. 1 BACK DOOR SERVICE HOLE COVER
    1. Engage the claws to install the No. 1 back door service hole cover.
      GTY756319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL DOOR PULL HANDLE

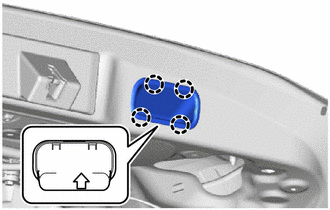

    1. Engage the claws to install the door pull handle as shown in the illustration.
      GTY756327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Full open the back door, and ensure that the arrow provided on the back of the door pull handle is facing upward.

  28. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

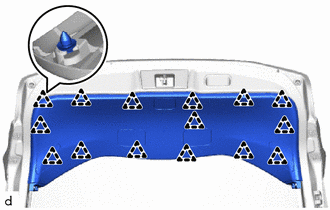

    1. Engage the clips to install the back door trim panel assembly.
      GTY756323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL PACKAGE TRAY TRIM GARNISH HOOK

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Install the package tray trim garnish hook.
      GTY772009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
      GTY756316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL BACK DOOR SIDE GARNISH LH

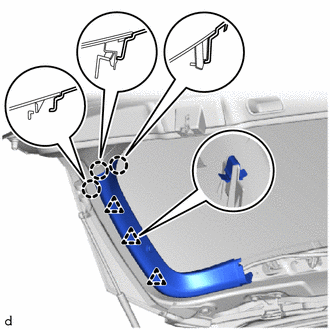

    1. Engage the claws and clips to install the back door side garnish LH.
      GTY756321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  32. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY

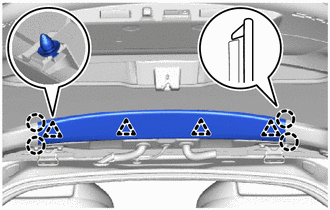

    1. Engage the claws and clips to install the back door trim upper panel assembly.
      GTY772011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - STEP 50

  34. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)

    Refer to PROCEDURE - STEP 51
