Components [12/2021 - ]
| *A | w/ Package Tray Trim | *B | w/ Tonneau Cover |
| *1 | PACKAGE TRAY TRIM PANEL ASSEMBLY | *2 | TONNEAU COVER ASSEMBLY |
| Callout | Description | Callout | Description |
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | BACK DOOR LOCK COVER |
| *3 | BACK DOOR LOWER STOPPER | *4 | BACK DOOR PANEL CUSHION |
| *5 | BACK DOOR SERVICE HOLE COVER LH | *6 | BACK DOOR SERVICE HOLE COVER RH |
| *7 | BACK DOOR SIDE GARNISH LH | *8 | BACK DOOR SIDE GARNISH RH |
| *9 | BACK DOOR TRIM PANEL ASSEMBLY | *10 | BACK DOOR TRIM UPPER PANEL ASSEMBLY |
| *11 | DOOR PULL HANDLE | *12 | NO. 1 BACK DOOR PANEL PROTECTOR |
| *13 | NO. 1 BACK DOOR SERVICE HOLE COVER | *14 | NO. 2 BACK DOOR PANEL PROTECTOR |
| *15 | NO. 2 BACK DOOR SERVICE HOLE COVER | *16 | NO. 3 BACK DOOR SERVICE HOLE COVER |
| *17 | PACKAGE TRAY TRIM GARNISH HOOK | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

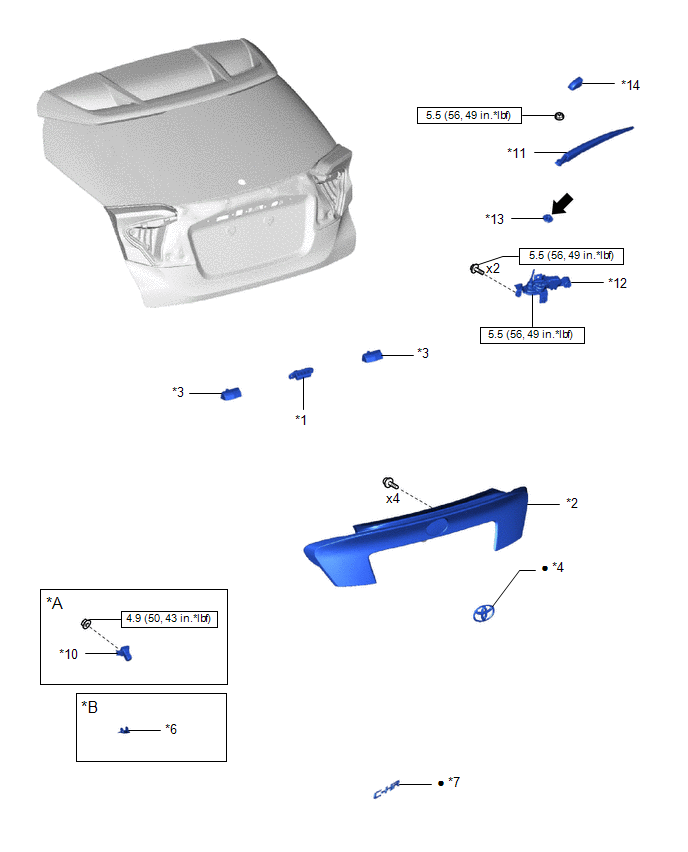

| Callout | Description | Callout | Description |
| *A | w/ Rear View Monitor System | *B | w/o Rear View Monitor System |
| *1 | BACK DOOR OPENER SWITCH ASSEMBLY | *2 | BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
| *3 | LICENSE PLATE LIGHT ASSEMBLY | *4 | NO. 1 BACK DOOR EMBLEM |
| *5 | NO. 2 BACK DOOR GARNISH RETAINER | *6 | NO. 2 BACK DOOR NAME PLATE |
| *7 | REAR TELEVISION CAMERA ASSEMBLY | *8 | REAR WIPER ARM AND BLADE ASSEMBLY |
| *9 | REAR WIPER MOTOR ASSEMBLY | *10 | REAR WIPER MOTOR GROMMET |
| *11 | REAR WIPER ARM HEAD CAP | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
| Callout | Description | Callout | Description |
| *1 | HOLE PLUG | *2 | REAR LIGHT ASSEMBLY LH |
| *3 | REAR LIGHT ASSEMBLY RH | *4 | REAR LIGHT PACKING |
| *5 | REAR SPOILER ASSEMBLY | *6 | REAR WASHER NOZZLE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
