Adjustment [02/2017 - ]: Procedure

INSPECT BACK DOOR

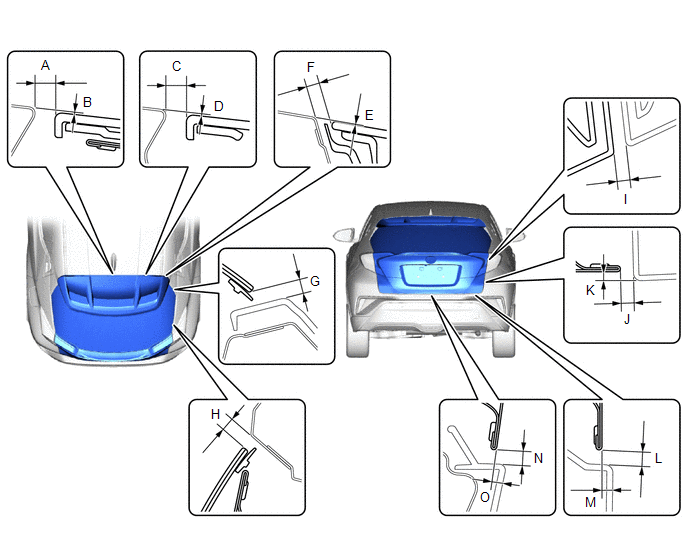

Check that the clearance measurements of areas "A" to "O" are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
A	7.1 to 11.1 mm (0.280 to 0.437 in.)	B	-1.0 to 3.0 mm (-0.039 to 0.118 in.)
C	7.1 to 11.1 mm (0.280 to 0.437 in.)	D	-1.0 to 3.0 mm (-0.039 to 0.118 in.)
E	-2.0 to 2.0 mm (-0.079 to 0.079 in.)	F	4.0 to 8.0 mm (0.157 to 0.315 in.)
G	3.5 to 8.5 mm (0.138 to 0.335 in.)	H	3.5 to 8.5 mm (0.138 to 0.335 in.)
I	3.3 to 7.3 mm (0.130 to 0.287 in.)	J	3.5 to 7.5 mm (0.138 to 0.295 in.)
K	2.4 to 5.4 mm (0.094 to 0.213 in.)	L	4.0 to 8.0 mm (0.157 to 0.315 in.)
M	2.8 to 5.8 mm (0.110 to 0.228 in.)	N	4.0 to 8.0 mm (0.157 to 0.315 in.)
O	3.8 to 6.8 mm (0.150 to 0.268 in.)	-	-

REMOVE DECK TRIM REAR COVER
Refer to PROCEDURE - STEP 37 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 41 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 42 [09/2019 - 08/2020] , or refer to PROCEDURE - STEP 42 [08/2020 - 12/2021] , or refer to PROCEDURE - STEP 38 [12/2021 - ]

ADJUST BACK DOOR

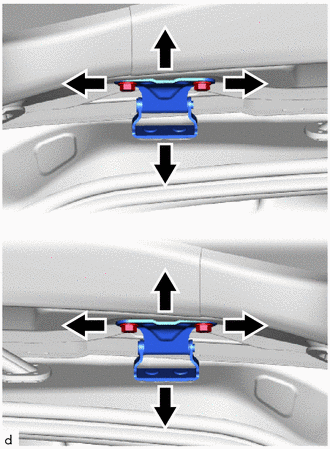

Loosen the 4 hinge bolts on the back door and adjust the back door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the back door after adjustment.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

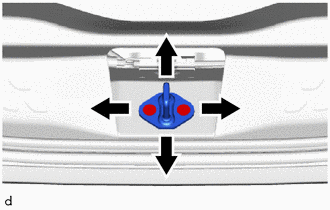

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

INSTALL DECK TRIM REAR COVER
Refer to PROCEDURE - STEP 20 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 22 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 23 [09/2019 - 08/2020] , or refer to PROCEDURE - STEP 23 [08/2020 - 12/2021] , or refer to PROCEDURE - STEP 21 [12/2021 - ]
