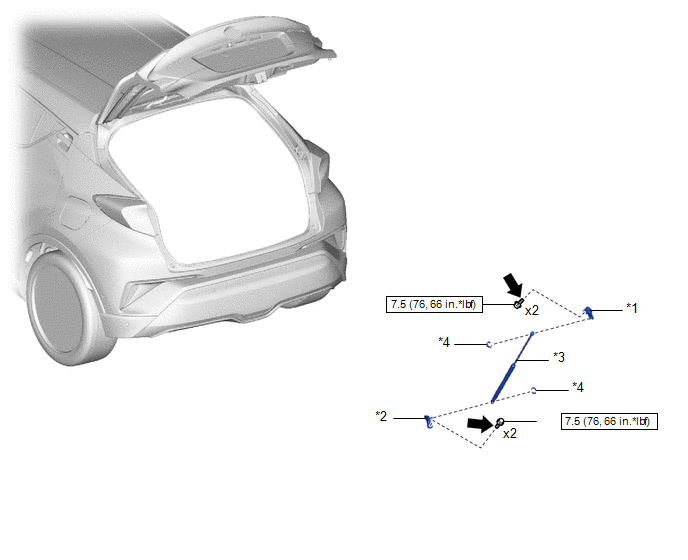

Components [02/2017 - ]
| Callout | Description | Callout | Description |
| *1 | BACK DOOR DAMPER STAY LOWER BRACKET | *2 | BACK DOOR DAMPER STAY UPPER BRACKET |
| *3 | BACK DOOR STAY ASSEMBLY | *4 | STOP RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ||
| * | Precoated part | - | - |
