Removal [02/2017 - ]: Procedure

HINT:

Use the same procedure as for the opposite side.

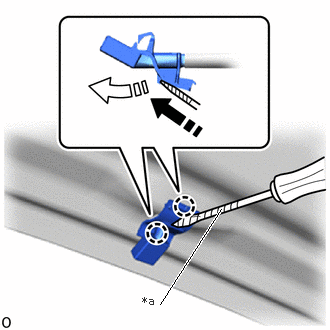

1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as indicated by the arrows, shown in the illustration to separate the washer nozzle sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   	Remove in this Direction (1)
   	Remove in this Direction (2)

   NOTE:

   Be careful not to damage the windshield glass.

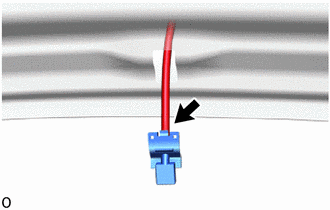

2. Disconnect the washer hose to remove the washer nozzle sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Washer nozzle sub-assemblies cannot be reused.
