Removal [10/2017 - ]: Procedure

  1. REMOVE FRONT ARMREST BASE UPPER PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 4 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - ]

  2. REMOVE FRONT ARMREST BASE UPPER PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 5 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - ]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 3 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - ]

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 6 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - ]

  5. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

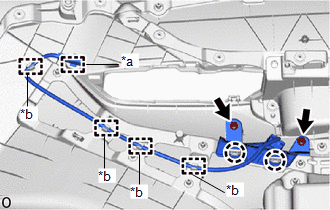

    GTY746608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Clamp
    *b Guide
    1. Using a clip remover, disengage the clamp and guides to disconnect the wire harness.
    2. Remove the 2 screws.
    3. Disengage the claws to remove the No. 1 interior illumination light assembly.
