Components [09/2019 - 12/2021]

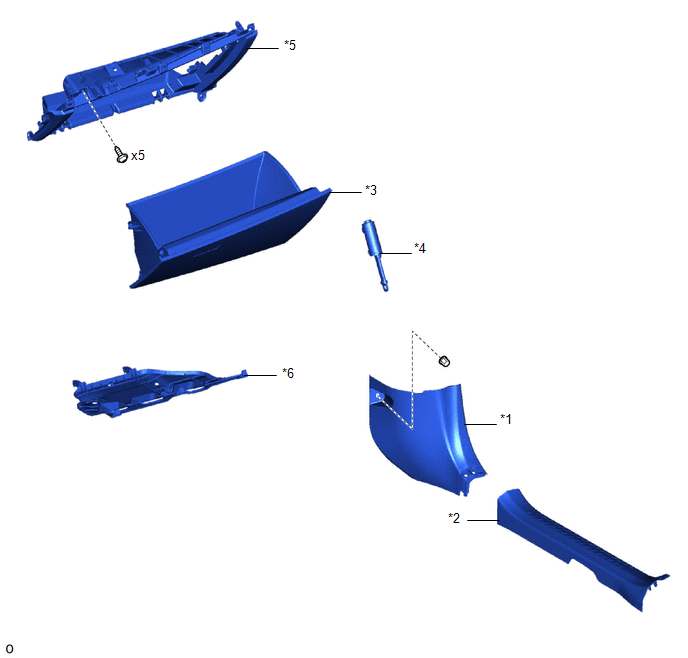

| *1 | COWL SIDE TRIM BOARD RH | *2 | FRONT DOOR SCUFF PLATE RH |
| *3 | GLOVE COMPARTMENT DOOR ASSEMBLY | *4 | GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY |
| *5 | NO. 2 INSTRUMENT PANEL LOWER FINISH PANEL | *6 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |

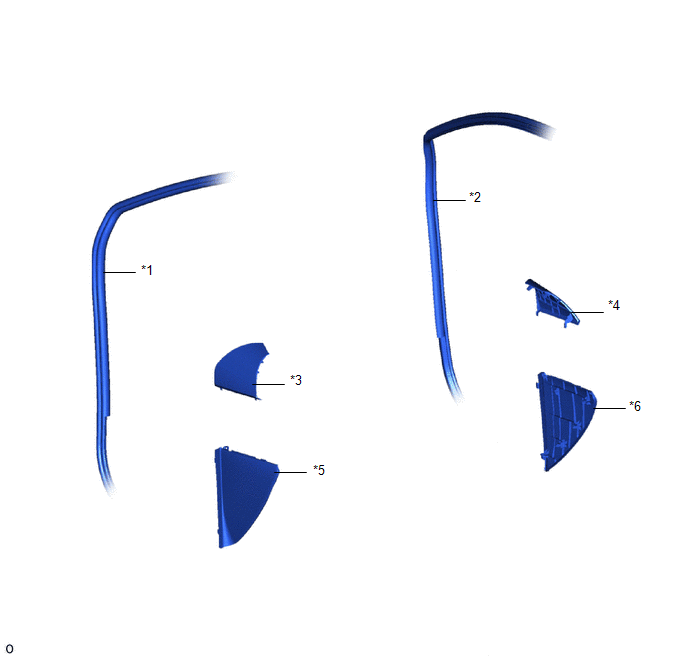

| *1 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | INSTRUMENT PANEL FINISH END PANEL LH | *4 | INSTRUMENT PANEL FINISH END PANEL RH |
| *5 | INSTRUMENT SIDE PANEL LH | *6 | INSTRUMENT SIDE PANEL RH |

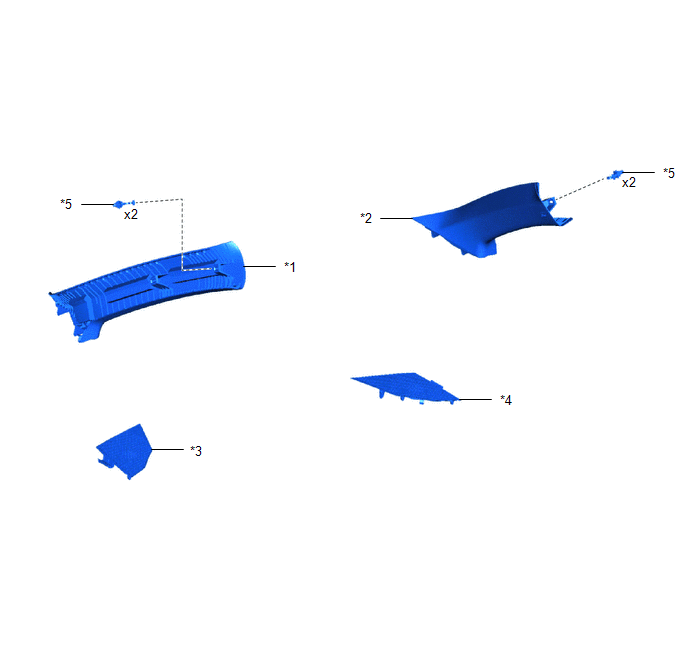

| *1 | FRONT PILLAR GARNISH LH | *2 | FRONT PILLAR GARNISH RH |
| *3 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | *4 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY |
| *5 | FRONT PILLAR GARNISH CLIP | - | - |

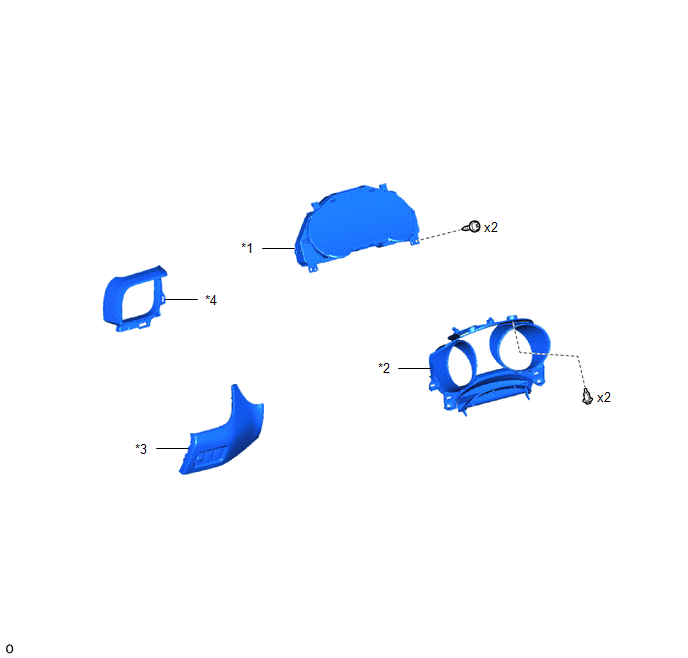

| *1 | COMBINATION METER ASSEMBLY | *2 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *3 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *4 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
Fig 5: Instrument Panel Safety Pad Replacement Components With Torque Specification [09/2019 - 12/2021] (5 Of 10)
| Callout | Description | Callout | Description |
| *1 | FUSE BOX OPENING COVER | *2 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *3 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY WITH DOOR | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

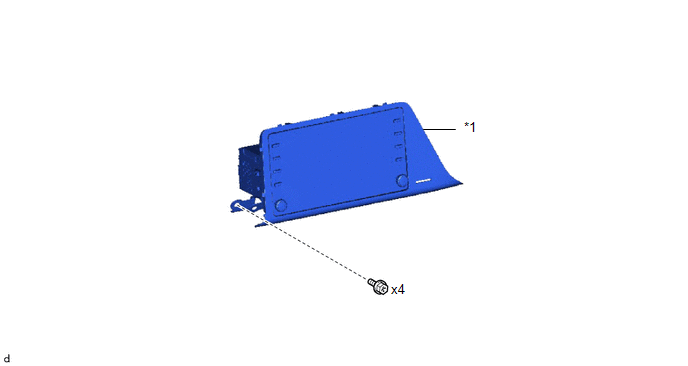

| *1 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET | - | - |

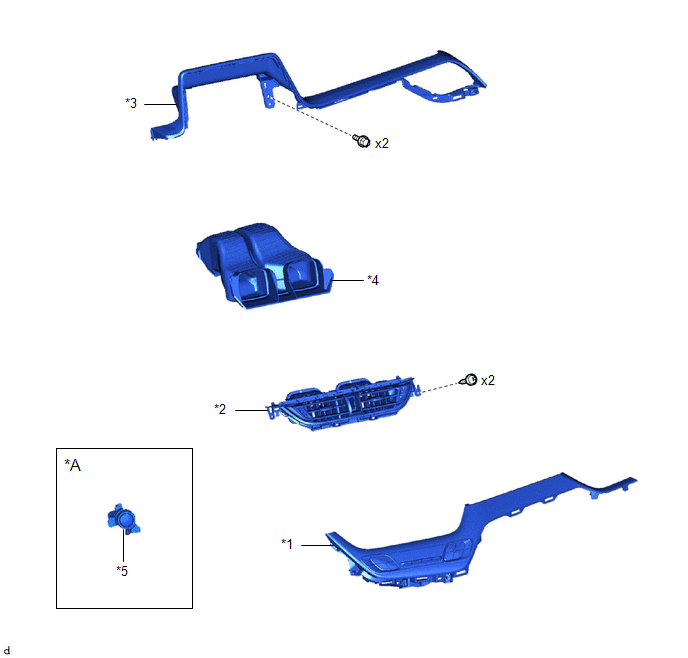

| *A | w/ Smart Key System | - | - |
| *1 | INSTRUMENT CLUSTER FINISH LOWER CENTER PANEL SUB-ASSEMBLY | *2 | INSTRUMENT PANEL CENTER REGISTER ASSEMBLY |
| *3 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *4 | NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY |
| *5 | STARTER SWITCH BEZEL | - | - |

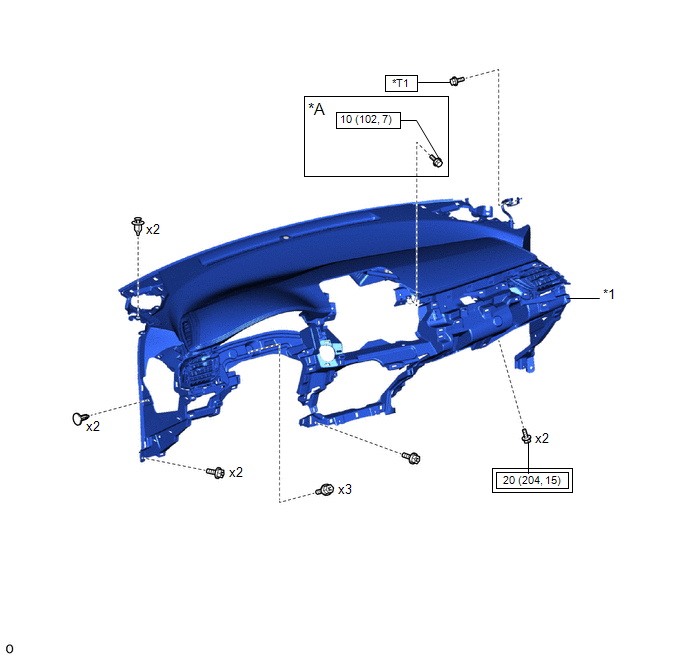

Fig 8: Instrument Panel Safety Pad Replacement Components With Torque Specification [09/2019 - 12/2021] (8 Of 10)
| Callout | Description | Callout | Description |
| *A | for TMC Made | - | - |
| *1 | INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| *T1 | for TMMT Made, Type A: 10.5 N*m (107 kgf*cm, 8 ft.*lbf) for TMMT Made, Type B: 10 N*m (102 kgf*cm, 7 ft.*lbf) for TMC Made: 10 N*m (102 kgf*cm, 7 ft.*lbf) |
- | - |

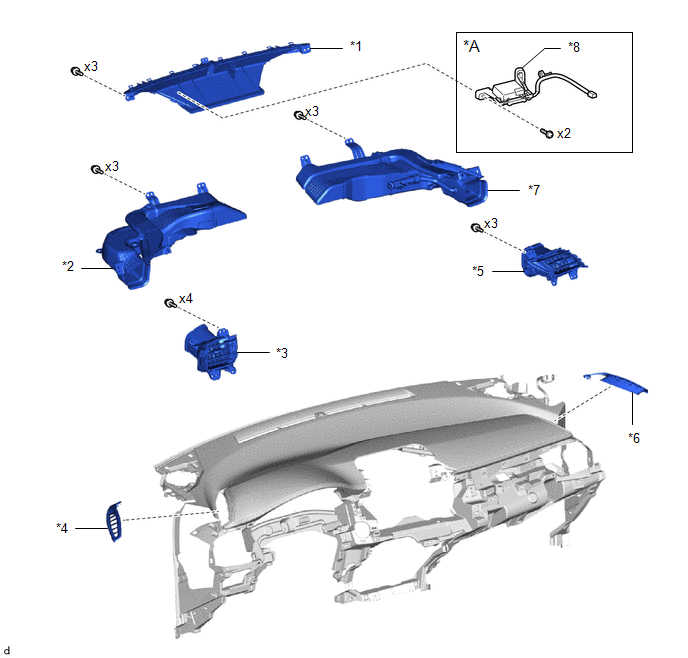

| *A | w/ Telephone and GPS Antenna | - | - |
| *1 | DEFROSTER NOZZLE ASSEMBLY | *2 | NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY |
| *3 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | *4 | NO. 1 SIDE DEFROSTER NOZZLE |
| *5 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY | *6 | NO. 2 SIDE DEFROSTER NOZZLE |
| *7 | NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY | *8 | TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET |
| *A | w/ Ion Generator | - | - |
| *1 | ANTENNA CORD SUB-ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY | *4 | ION GENERATOR SUB-ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL CUSHION | *6 | NO. 1 INSTRUMENT PANEL PIN |
| *7 | NO. 2 INSTRUMENT PANEL WIRE | - | - |
| • | Non-reusable part | - | - |
