Front Pillar Upper Cover
>>
Components [02/2017 - ]
Components [02/2017 - ]

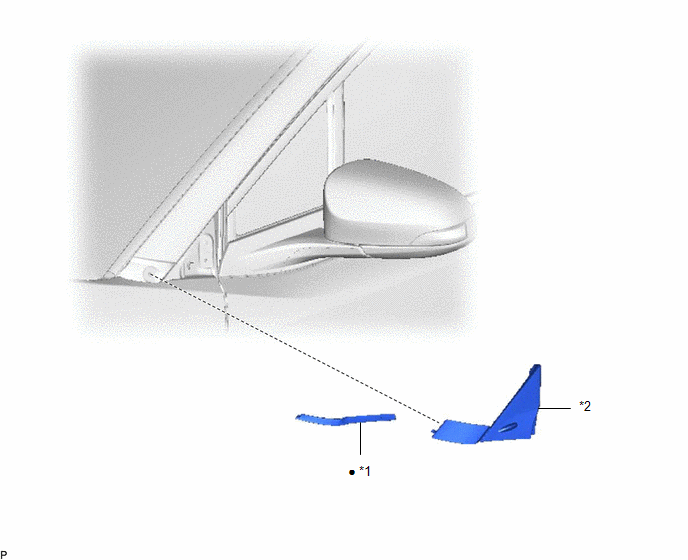

Fig 1: Front Pillar Upper Cover Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT PILLAR COVER PROTECTOR
*2
FRONT PILLAR UPPER COVER SUB-ASSEMBLY
•
Non-reusable part
-
-
