Removal [10/2017 - 05/2018]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29

  2. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

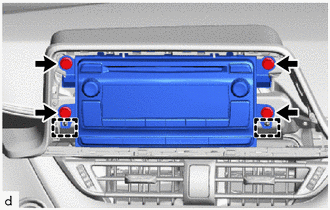

    1. Remove the 4 screws.
      GTY765267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the radio receiver assembly with bracket toward the rear of the vehicle to disengage the guides.
    3. Disconnect each connector and remove the radio receiver assembly with bracket.
  3. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 3 screws and No. 1 radio bracket from the radio receiver assembly.
      GTY769014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 3 screws and No. 2 radio bracket from the radio receiver assembly.
      GTY742632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
