Removal [09/2019 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 4

  2. REMOVE INSTRUMENT CLUSTER FINISH LOWER CENTER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 29 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 29 [12/2021 - ]

  3. REMOVE INSTRUMENT PANEL CENTER REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 31 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 31 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 31 [12/2021 - ]

  4. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

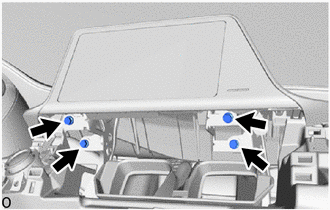

    1. Remove the 4 screws.
      GTY892540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

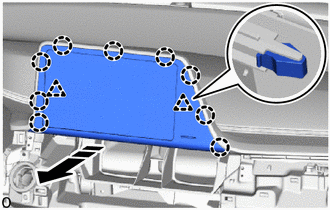

    2. Pull the radio and display receiver assembly with bracket toward the rear of the vehicle to disengage the claws and clips as shown in the illustration.
      GTY945101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector and remove the radio and display receiver assembly with bracket.
  5. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY
    1. Disengage the claws to remove the instrument cluster finish center panel sub assembly.
      GTY859004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 RADIO RECEIVER BRACKET
    1. Remove the 2 screws and No. 1 radio receiver bracket from the radio and display receiver assembly.
      GTY858486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 RADIO RECEIVER BRACKET
    1. Remove the 2 screws and No. 2 radio receiver bracket from the radio and display receiver assembly.
      GTY859006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
