Reassembly [02/2017 - ]: Procedure

  1. INSTALL COMBINATION METER GLASS

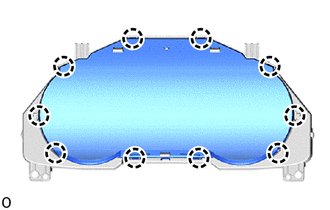

    1. Engage the claws to install the combination meter glass.
      GTY744487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
