Components [02/2017 - ]

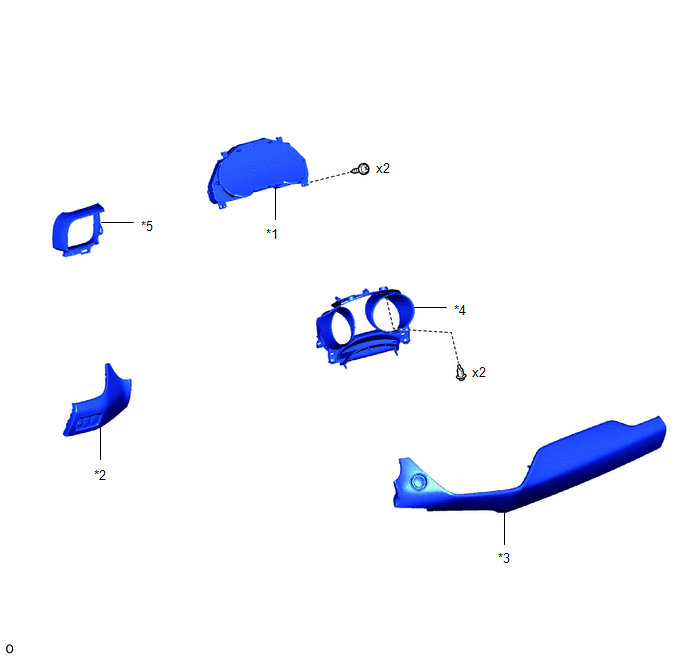

Fig 1: Combination Meter Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COMBINATION METER ASSEMBLY	*2	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*3	INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY	*4	INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
*5	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY	-	-

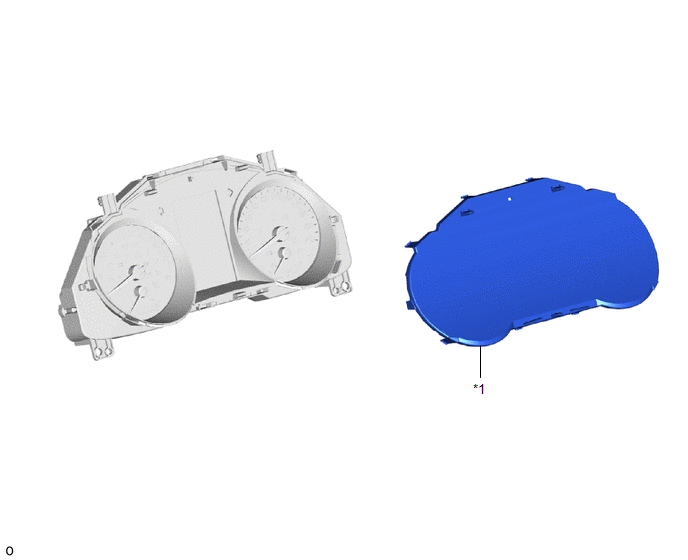

Fig 2: Combination Meter Replacement Components (2 Of 2)

COMBINATION METER GLASS
