Removal [02/2017 - 05/2018]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 29 [10/2017 - 05/2018]

  2. REMOVE CLOCK ASSEMBLY

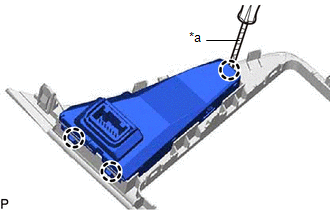

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the clock assembly.
      GTY771690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
