Installation [02/2017 - 05/2018]: Procedure

  1. INSTALL CLOCK ASSEMBLY

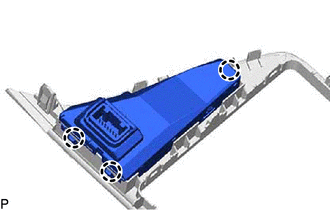

    1. Engage the claws to install the clock assembly.
      GTY744490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 11 [10/2017 - 12/2017] , or refer to PROCEDURE - Step 11 [12/2017 - 05/2018]
