Meter / Gauge / Display - Service Information
>>
Clock
>>
Components [02/2017 - 05/2018]
Components [02/2017 - 05/2018]

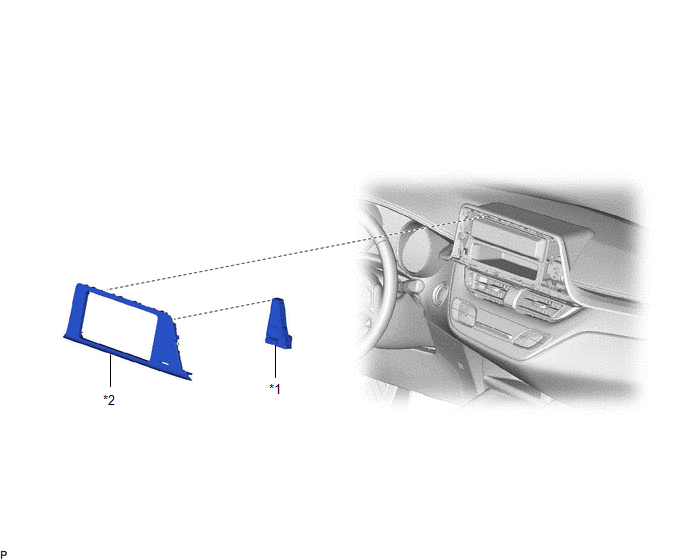

Fig 1: Clock Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CLOCK ASSEMBLY
*2
INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY
