Parts Location [09/2019 - 12/2021]: Illustration

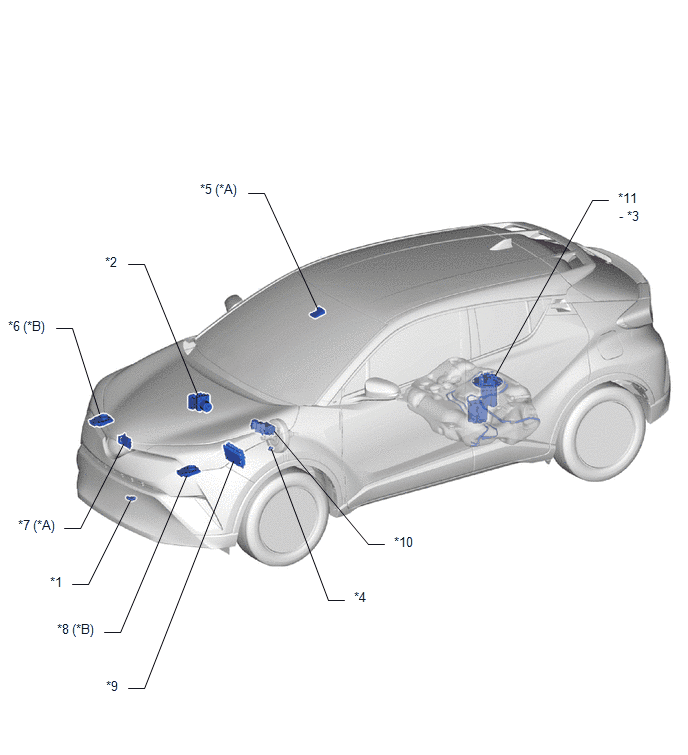

| *A | w/ Toyota Safety Sense | *B | w/ Headlight ECU |
| *1 | THERMISTOR ASSEMBLY (AMBIENT TEMPERATURE SENSOR) | *2 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *3 | FUEL SENDER GAUGE ASSEMBLY | *4 | VACUUM WARNING SWITCH ASSEMBLY |
| *5 | FORWARD RECOGNITION CAMERA | *6 | HEADLIGHT ECU SUB-ASSEMBLY RH |
| *7 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *8 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *9 | ECM | *10 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY (BRAKE FLUID LEVEL WARNING SWITCH) |
| *11 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | - | - |
| *A | w/ Washer Level Warning Switch | - | - |
| *1 | LEVEL WARNING SWITCH ASSEMBLY | *2 | HEADLIGHT ASSEMBLY LH |
| *3 | HEADLIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | - | - |

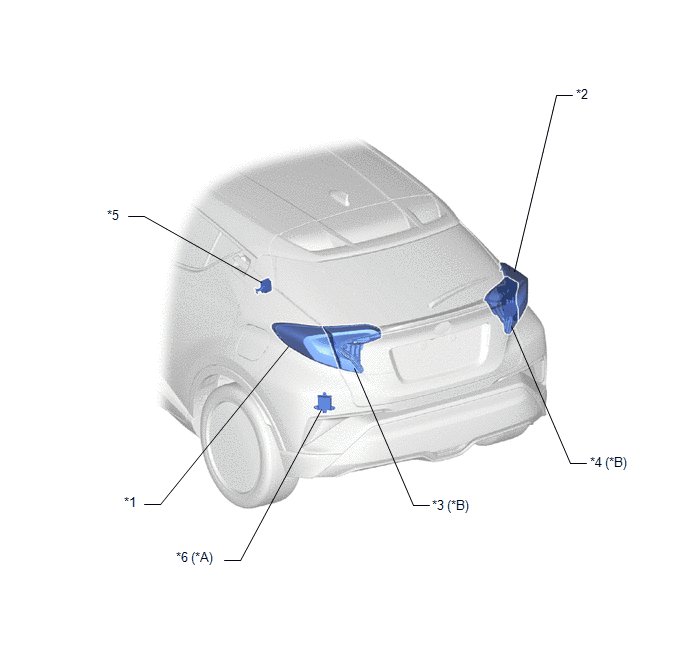

| *A | w/ Blind Spot Monitor System | *B | for LED Type |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | REAR LIGHT ASSEMBLY LH | *4 | REAR LIGHT ASSEMBLY RH |
| *5 | TIRE PRESSURE WARNING ECU AND RECEIVER | *6 | BLIND SPOT MONITOR SENSOR LH |

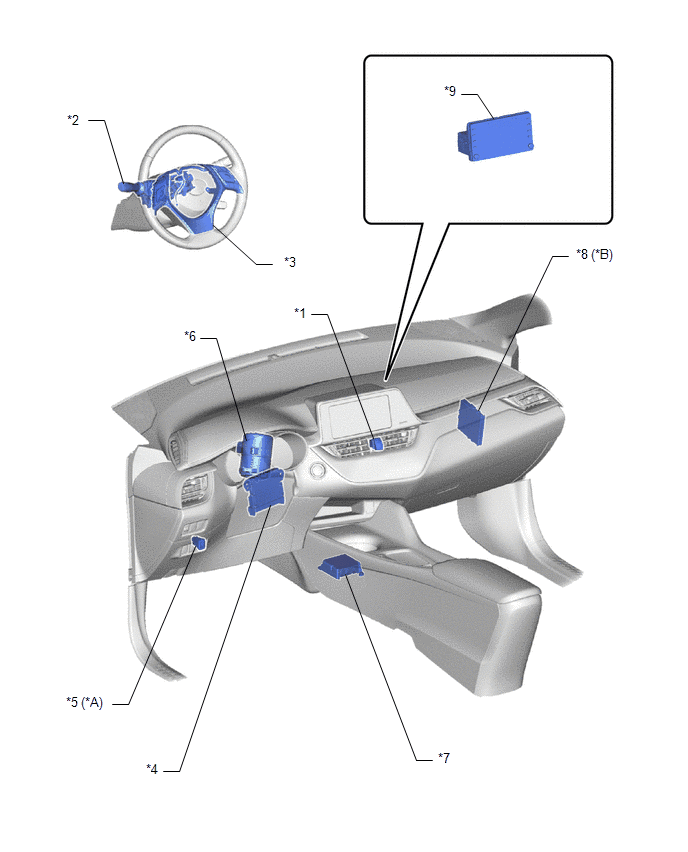

| *A | w/ Light Control Rheostat | *B | w/ Smart Key System |
| *1 | HAZARD WARNING SIGNAL SWITCH | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | LIGHT CONTROL RHEOSTAT | *6 | POWER STEERING ECU ASSEMBLY |
| *7 | AIRBAG SENSOR ASSEMBLY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | RADIO AND DISPLAY RECEIVER ASSEMBLY | - | - |

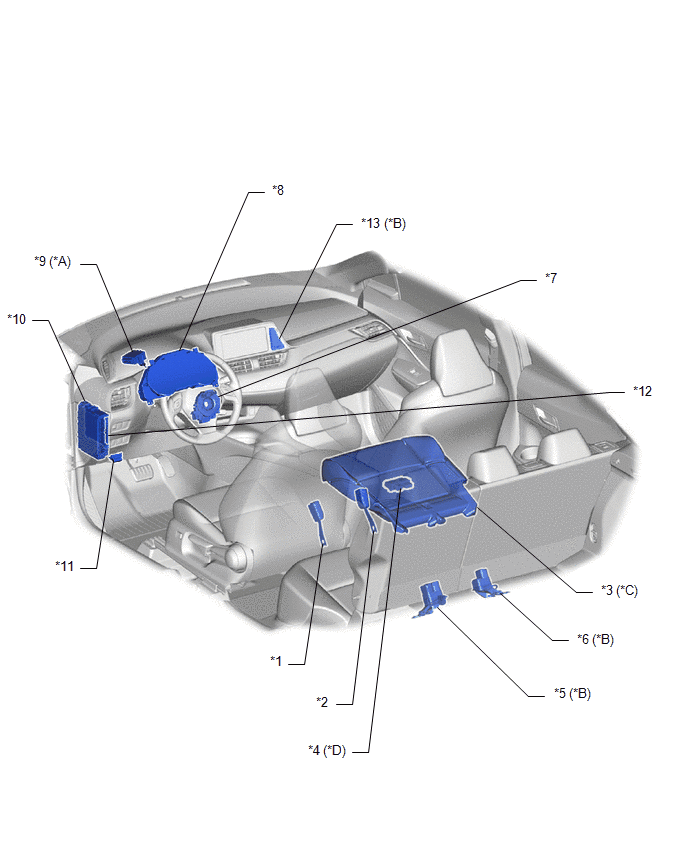

| *A | w/ Rain Sensor | *B | w/ Rear Seat Belt Warning |
| *C | w/o Occupant Classification System | *D | w/ Occupant Classification System |
| *1 | FRONT SEAT INNER BELT ASSEMBLY (DRIVER SEAT) | *2 | FRONT SEAT INNER BELT ASSEMBLY (FRONT PASSENGER SEAT) |
| *3 | OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD) | *4 | OCCUPANT DETECTION ECU |
| *5 | REAR SEAT INNER BELT WITH CENTER ASSEMBLY LH | *6 | REAR SEAT INNER BELT ASSEMBLY RH |
| *7 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *8 | COMBINATION METER ASSEMBLY |
| *9 | WINDSHIELD WIPER RELAY ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER IG2 FUSE - ECU DDC NO. 2 FUSE |
| *11 | DLC3 | *12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *13 | CLOCK ASSEMBLY | - | - |
