Speed Signal Circuit [12/2021 - ]: Wiring Diagram

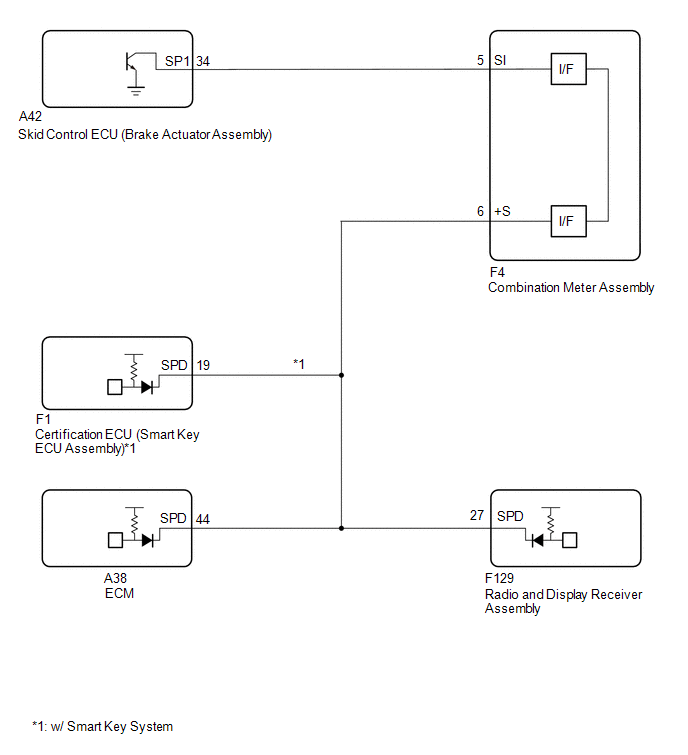

Fig 1: Speed Signal Circuit Diagram

GTY1040339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
