Speed Signal Circuit [10/2017 - 05/2018]: Wiring Diagram

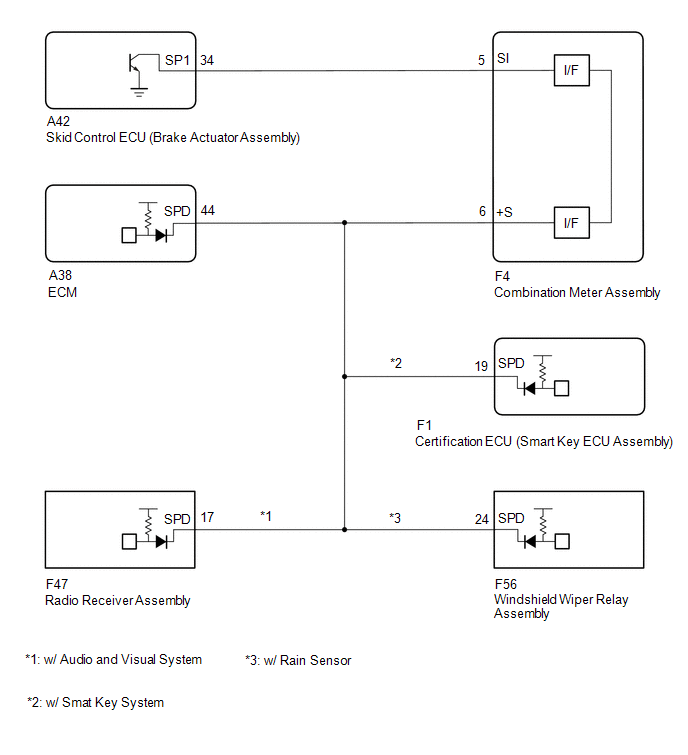

Fig 1: Speed Signal Circuit Diagram

GTY743776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
