Speed Signal Circuit [05/2018 - 09/2019]: Wiring Diagram

  1. w/o Navigation System

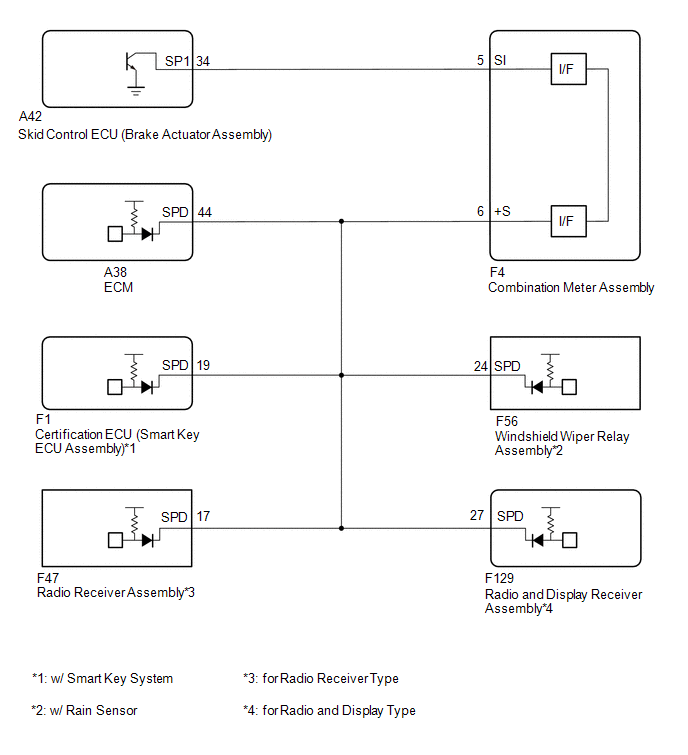

    Fig 1: Speed Signal Circuit Diagram - W/O Navigation System
    GTY895121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Navigation System

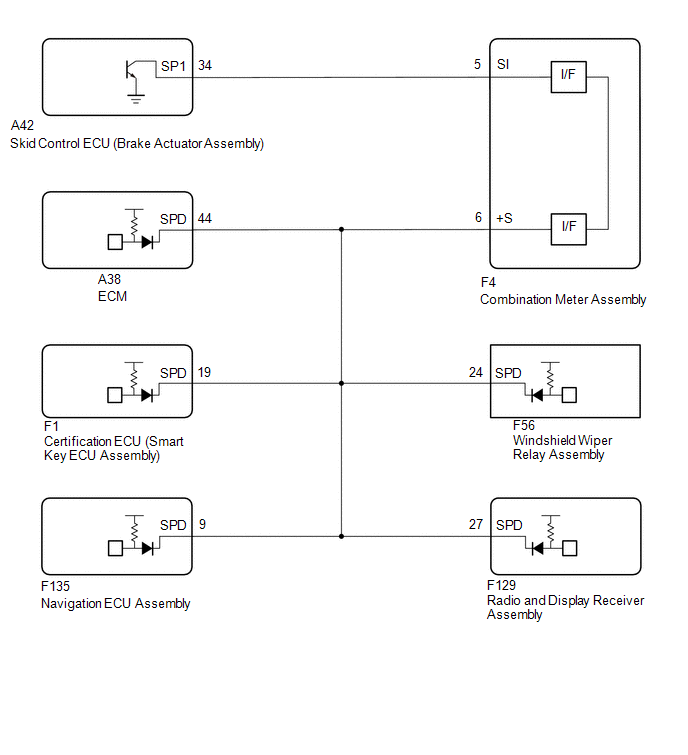

    Fig 2: Speed Signal Circuit Diagram - W/ Navigation System
    GTY863708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
