Speed Signal Circuit [02/2017 - 10/2017]: Wiring Diagram

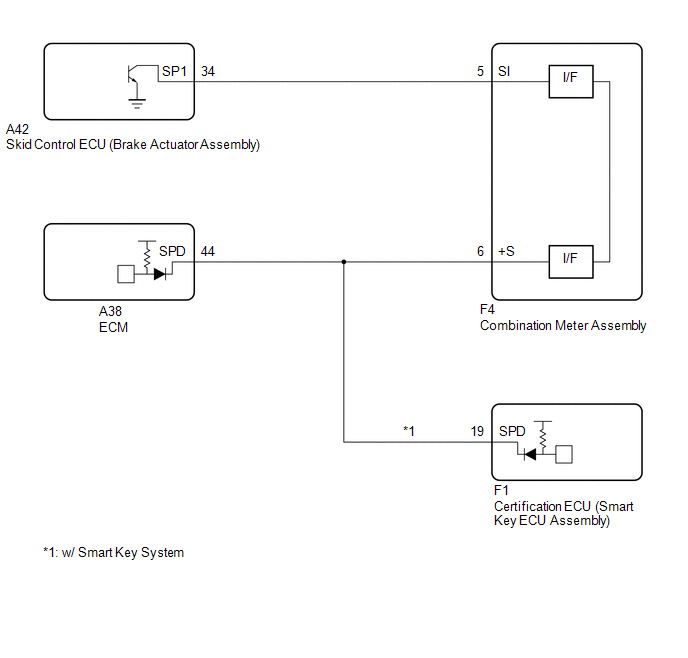

Fig 1: Speed Signal Circuit Diagram

GTY761995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
