Meter / Gauge / Display - Diagnostic Codes & Symptom Tests
>>
Meter / Gauge System
>>
Operating Light Control Rheostat does not Change Light Brightness [02/2017 - ]
>>
Wiring Diagram
Operating Light Control Rheostat does not Change Light Brightness [02/2017 - ]: Wiring Diagram

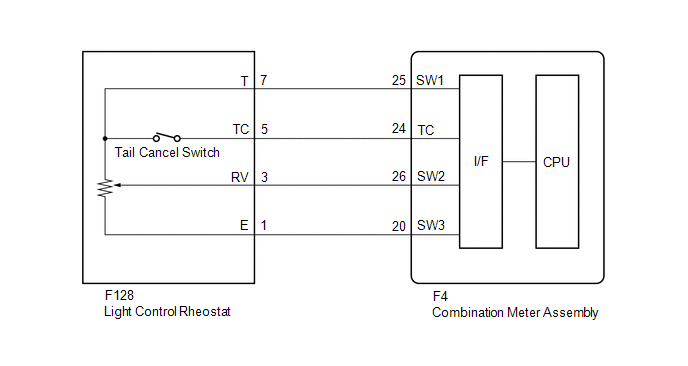

Fig 1: Operating Light Control Rheostat Does Not Change Light Brightness Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
