Fuel Receiver Gauge Display Malfunction [02/2017 - 10/2017]: Wiring Diagram

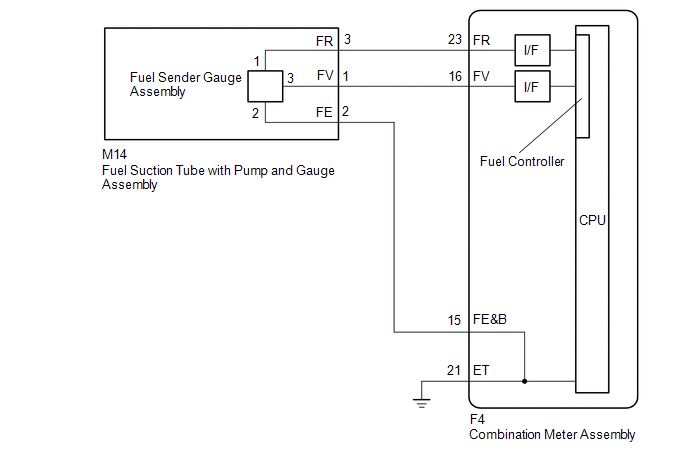

Fig 1: Fuel Receiver Gauge Display Malfunction Circuit Diagram

GTY742492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
