Entire Combination Meter does not Operate [02/2017 - ]: Wiring Diagram

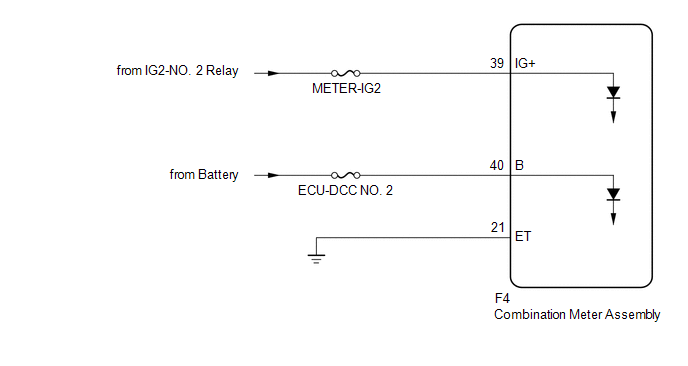

Fig 1: Entire Combination Meter Circuit Diagram

GTY747780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
