DTC B150A: Lost Communication with HMI-LAN [09/2019 - ]: Wiring Diagram

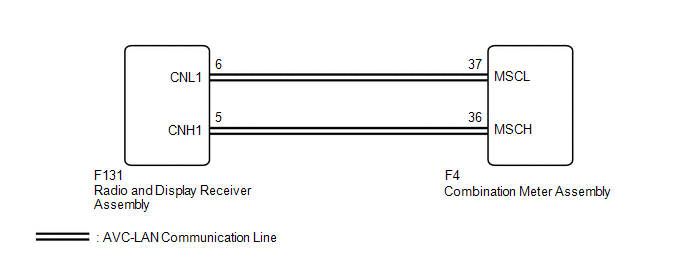

Fig 1: Lost Communication With HMI-LAN Circuit Diagram

GTY856017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
